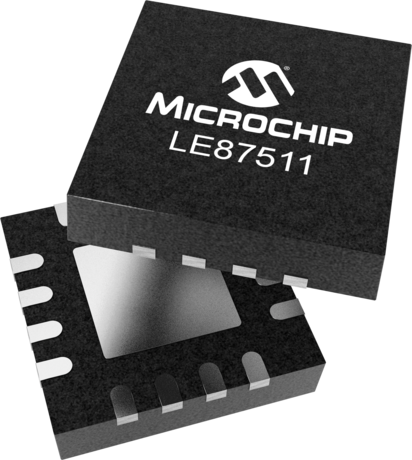

product primary image

LE87511

PLC Single Channel Line Driver

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le87511 is a single channel line driver designed to work in home network G.hn power line communication systems. The Le87511 contains a pair of wideband amplifiers designed with Microchip's HV30 Bipolar SOI process for low power consumption. The line driver gain is fixed internally. The amplifiers are powered from a single supply. The device can be programmed to one of four preset bias levels to optimize power and performance. A disable state forces the line driver into a low-power, high impedance mode for receive transmissions.

Additional Features
  • High Voltage Gain - 25 dB
  • Operation to 86 MHz
  • Class AB Operation
  • Low Power Operation
  • Capable of Driving Line Impedance Between 50 Ohm to 200 Ohm
  • Enable/Disable Control
  • Small 16-pin, 4x4 mm QFN Package
  • RoHS compliant
Parametrics
Name
Value
Application
PLC, G.HN, HPAV 2.0
Series
PLC
Loop Length
Short
Signal Power (dBm)
16
Number of Ports
1

Documents

Jump to:

Data Sheets


748KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE87511NQCT
0.046600
0.234000
16
VQFN
4x4x1mm
Matte Tin
e3
LE87511NQC
0.046600
0.734694
16
VQFN
4x4x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
