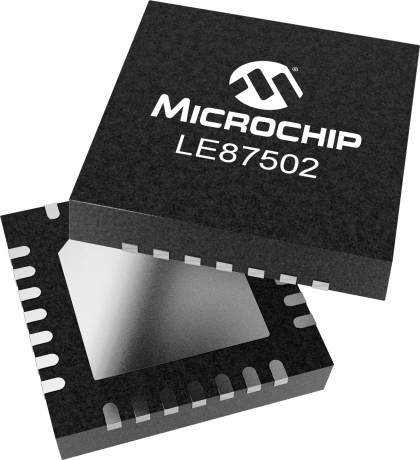

product primary image

LE87502

PLC Dual Channel Line Driver

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The Le87502 is a dual channel line driver designed to work in Home Plug Alliance HPAV2 systems. Each channel can be enabled independently allowing multiple-in, multiple-out (MIMO) or single-in, single-out (SISO) operations. When each channel is enabled, the operating level can be set to Full, 90% or 80% power. The Le87502 delivers superior performance and can drive a line impedance of 100 Ohm down to 12 Ohm through a proper transformer. In addition, the Le87502 features a Standby state which forces both channels into a long-term sleep mode.

Additional Features
  • Best in Class Density
  • Dual Channel Architecture
  • 28-pin, 4x5 mm QFN Package
  • Low Power Operation
  • Class AB Operation
  • Independent Channel Enable/Disable Control
  • Capable of Driving Line Impedance Between 12 Ohm to 100 Ohm
  • Operation to 86 MHz
  • RoHS compliant
Parametrics
Name
Value
Application
PLC, G.HN, HPAV 2.0
Series
PLC
Loop Length
Short
Signal Power (dBm)
20
Number of Ports
2

Documents

Jump to:

Data Sheets


986KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE87502MQC
0.055600
0.734694
28
VQFN
4x5x1mm
Matte Tin
e3
LE87502MQCT
0.055600
0.370000
28
VQFN
4x5x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
