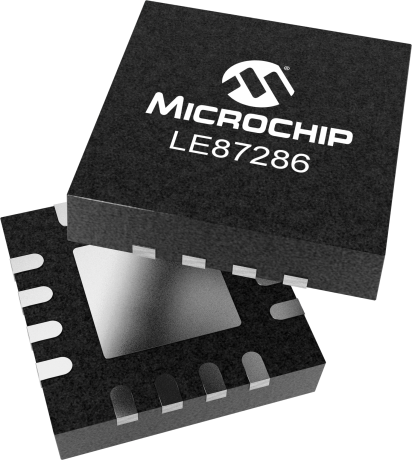

product primary image

LE87286

G.Fast Single Channel Line Driver

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le87286 is a single channel line driver designed for home gateway applications. It supports transmission of G.Fast signals with very low power dissipation. The Le87286 contains a pair of wideband amplifiers designed with Microchip’s HV15S Bipolar SOI process for low power consumption.The line driver gain is fixed internally with two programmable gain levels. The amplifier are powered from a single power supply. When a gain level is selected, the device can be programmed to one of three Transmit (TX) states, Receive (RX) states or the Disable state.

Additional Features
  • Supports high frequency (up to 212 MHz) G.Fast transmission
  • Very low power dissipation
    • Class AB operation
  • 2 programmable gain levels
  • 3 programmable transmit (TX) states and associated Receive (RX) states
  • No external gain resistors required
  • Small footprint package
    • 16-pin (4 mm x 4 mm) QFN
  • RoHS compliant
Parametrics
Name
Value
Application
G.Fast 212MHz
Series
G.fast
Loop Length
Short
Signal Power (dBm)
8
Number of Ports
1

Documents

Jump to:

Data Sheets


1075KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE87286NQC
0.046600
0.734694
16
VQFN
4x4x1mm
Matte Tin
e3
LE87286NQCT
0.046600
0.234000
16
VQFN
4x4x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
