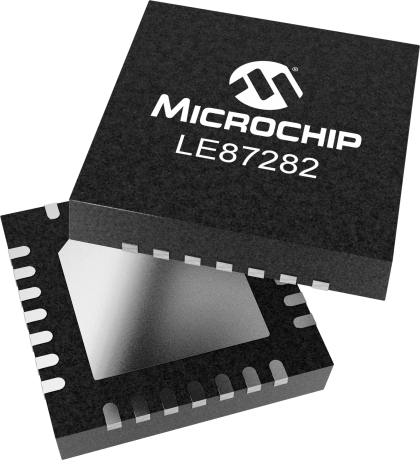

product primary image

LE87282

G.Fast Dual Channel Line Driver

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le87282 is a dual channel differential amplifier designed to drive G.Fast transmission signals as well as VDSL2 and ADSL2+ signals with very low power dissipation. The Le87282 contains two pairs of wideband amplifiers designed with Microchip’s HV15 Bipolar SOI process for low power consumption. The line driver gain is fixed internally. The amplifiers are powered from a single supply. The device can be programmed to one-of-three preset Bias levels or to impedance controlled Disable or Standby states. The control pins respond to input levels that can be generated with a standard tri-state GPIO.

Additional Features
  • Supports high frequency G.Fast transmission
  • Supports VDSL2 and ADSL2+ operation
  • Very low power dissipation
    • Class AB operation
  • 5 programmable states
  • No external gain resistors required
  • Small footprint package
    • 28-pin (4 mm x 5 mm) QFN
  • RoHS compliant
Parametrics
Name
Value
Application
G.Fast 106MHz
Series
G.fast
Loop Length
Short
Signal Power (dBm)
8
Number of Ports
2

Documents

Jump to:

Data Sheets


221KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE87282MQC
0.055600
0.734694
28
VQFN
4x5x1mm
Matte Tin
e3
LE87282MQCT
0.055600
0.370000
28
VQFN
4x5x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
