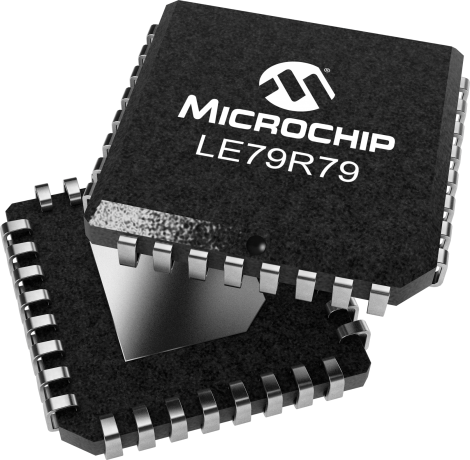

LE79R79

Ringing SLIC

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le79R79 is a bipolar monolithic SLIC device that support integrated (on-chip) ringing, pin-for-pin compatibility and flexibility for varying loop lengths. With the Ringing SLIC, you can achieve significant system-level cost reductions while designing innovative linecard solutions.

Additional Features
  • Through trapezoidal ringing
  • On-chip ring-trip detector
  • Low standby state power
  • Battery operation:
    • VBAT1: -40.5 to -75 V
    • VBAT2: -19 V to VBAT1
  • On-chip battery switching and feed selection
  • On-hook transmission
  • Two-wire impedance set by single external impedance
  • Programmable constant-current feed
  • Programmable Open Circuit voltage
  • Programmable loop-detect threshold
  • Current gain = 1000
  • Ground-key detector
  • Polarity reversal option available
  • Internal VEE regulator (no external -5 V power supply required)
Parametrics
Name
Value
Application
PBX
Series
VE580
Loop Length
Short
Battery Topology
External
Output Voltage (V) max
75
Number of Ports
1

Documents

Jump to:

Data Sheets


457KB

Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE79R79-1FQC
0.144200
1.353846
32
VQFN
8x8xmm
Matte Tin
e3
LE79R79-1DJC
1.103500
2.233333
32
PLCC
-
Matte Tin
e3
LE79R79-1DJCT
1.103500
2.293333
32
PLCC
-
Matte Tin
e3
LE79R79-2DJC
1.103500
2.233333
32
PLCC
-
Matte Tin
e3
LE79R79-2DJCT
1.103500
2.293333
32
PLCC
-
Matte Tin
e3
LE79R79-3DJC
1.103500
2.233333
32
PLCC
-
Matte Tin
e3
LE79R79-3DJCT
1.103500
2.293333
32
PLCC
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
