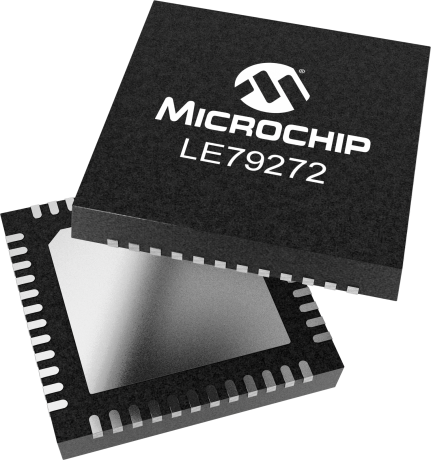

LE79272

Next Gen Carrier Chipset Dual SLIC

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The LE79272 Next Generation Dual Subscriber Line Interface Circuit (SLIC) device, in combination with an LE792388 SLAC device, implements a DSL friendly, high density universal telephone line interface. This enables the design of a low cost, high performance, fully software programmable line interface with worldwide applicability. All AC, DC, and signaling parameters are programmable. Additionally, the NGCC chip-set has integrated self-test and line-test capabilities to resolve faults to the line or line circuit.

Additional Features
  • Designed to minimize POTS transients, optimizing CRC performance for triple play applications
  • Best-in-class GR-844 equivalent testing
    • Fully validated test primitives and host routines
    • Guaranteed performance parameters
  • Optimized for best-in-class density
  • Monitor of two-wire interface voltages and currents supports:
    • Voice transmission
    • Internal ringing generation
    • Programmable DC feed characteristic
    • Selectable off-hook and ground-key thresholds
    • Subscriber line diagnostics
    • Power cross and fault detection
  • Supports 85 Vrms internal ringing
    • Supports balanced and unbalanced ringing
  • 3.3 V and battery supplies
    • Supports two negative and one positive battery
  • Dual battery operation for system power saving
    • Automatic battery switching
    • Intelligent thermal management
  • Compatible with inexpensive protection networks
  • Metering capable
    • 12 kHz and 16 kHz
    • Smooth polarity reversal
  • Tip-open mode supports ground start signaling
  • Integrated test load switch
  • 5 REN with DC offset
  • Features with Le79124 VCP
    • 72 channel call aggregation
    • GR-844 equivalent line testing
Parametrics
Name
Value
Application
NGCC SLIC
Series
VE792
Loop Length
Long
Battery Topology
External
Output Voltage (V) max
150
Number of Ports
2

Documents

Jump to:

Data Sheets


Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE79272PQC
0.123100
0.853846
48
VQFN
7x7x1mm
Matte Tin
e3
LE79272PQCT
0.123100
0.473333
48
VQFN
7x7x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
