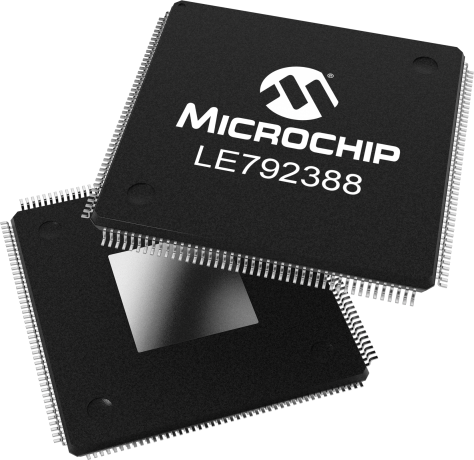

product primary image

LE792388

Next Gen Octal SLAC Device

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The LE792388 Next Generation Octal Subscriber Line Audio-processing Circuit (SLAC), in combination with the single channel LE79271 or dual LE79272 SLIC, implements a DSL friendly, high density 8-channel universal telephone line interface with wideband capability. This enables the design of a low cost, high performance, fully software programmable line interface with worldwide applicability. All AC, DC, and signaling parameters are programmable via a microprocessor interface. The LE792388 has an integrated test tool box which can be used standalone or for high density line cards you can offload a lot of the basic call control and test functions to the LE79124 or LE79128 VCP to help manage calls or resolve faults to the line or line circuit. A full API is available to run on a host processor to simplify software integration.

Low Density Chip Set:
Octal SLAC (codec) + Long Loop SLICs
Le792388 (codec) + Le79271 (SLIC) / Le79272 (Dual SLIC)
ZL792588 (codec with External/ Internal Ringing) + Le79271 (SLIC) / Le79272 (Dual SLIC)

Additional Features
  • Optimized for Next Generation Broadband xDSL and triple play applications
    • Eliminates transients that could cause CRC errors
  • Best-in-class GR-844 equivalent testing capability
  • Ideal for high density, medium and large line count applications
  • API-compatible with VE790 Series designs
  • High performance digital signal processor provides programmable control of all major line card functions
    • A-law/µ-law and linear codec/filter
    • Transmit and receive gain, Two-wire AC impedance, Transhybrid balance, Equalization
    • DC loop feeding
    • Loop supervision
    • Internal ringing generation and integrated ring-trip detection
    • Metering generation at 12 kHz and 16 kHz Envelope shaping and level control
    • Envelope shaping and level control
  • Enhanced line control and line-test support
    • DTMF and Modem Tone Detection
    • GR-909 and GR-844 Line and circuit testing capability
    • Tone generation (DTMF, FSK, and arbitrary tone)
  • Standard PCM and MPI digital interfaces
  • General purpose I/O pins, can be used as relay drivers
  • Features with Le79124 or LE79128 VCP
    • 72 to 128 channel call aggregation
    • GR-844 equivalent line testing
Parametrics
Name
Value
Application
NGCC Octal SLAC
Series
VE792
Loop Length
Long
Battery Topology
Fixed
SOC Interface
PCM/MPI
Output Voltage (V) max
140
Number of Ports
8

Documents

Jump to:

Data Sheets

Board Design Files


Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE792388TVCT
1.575200
3.324324
176
LQFP
20x20x1.4mm
Matte Tin
e3
LE792388TVC
1.575200
2.566667
176
LQFP
20x20x1.4mm
Matte Tin
e3
LE792388VQCT
0.398900
1.157143
164
VGQFN
13x13x0.95mm
Matte Tin
e3
LE792388VQC
0.398900
2.250000
164
VGQFN
13x13x0.95mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
