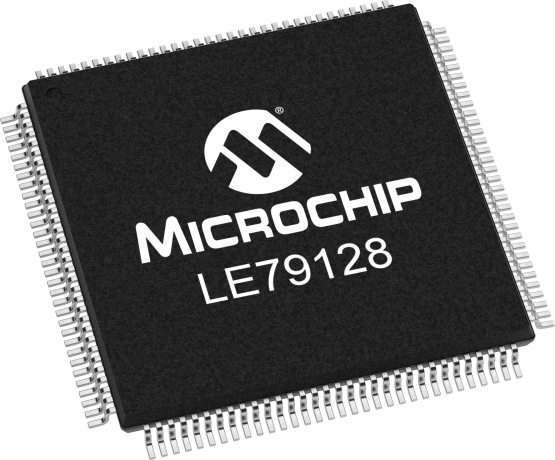

product primary image

LE79128

Next Generation VoiceEdge Control Processor

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le79128 Next Generation VoiceEdge™ Control Processor (VCP) is a second generation platform that delivers enhanced call control, self-test and line test capabilities. This latest processor works with Microchip NGCC devices using its SPI interfaces, PCM ports, and GPIO. The Le79128 device provides the same integrated line-testing and feature-set as the Le79112 device, plus additional capabilities such as 4 channels of simultaneous line testing and 128 channels of improved POTS control. This product enables the design of a low-cost, high performance, fully software programmable line interface with worldwide applicability. All AC, DC, and signaling parameters are programmable. The Le79128 device is provided with extensive software and support, through the LineCare™ software suite, enabling the designer to develop a fully programmable solution in the least amount of time.

High Density Chip Set:
Voice Control Processor (VCP) + Octal SLAC (codec) + Long Loop SLICs
Le79124 (72 Ch.) + Le792388 (codec) / ZL792588 (code with external/ internal ringing)  + Le79271 (SLIC) / Le79272 (Dual SLIC)
Le79128 (128 Ch.) + Le792388 (codec) / ZL792588 (code with external/ internal ringing) + Le79271 (SLIC) / Le79272 (Dual SLIC)

LineCare Test Software - Available Under Documents

LineCare software package for Next Generation VoiceEdge Control Processor (NGVCP) is a complete software solution that aggregates control of Voice Termination Devices (VTDs) to provide a simplified programming interface. The software package provides a set of functions additional to the feature set of the underlying VTDs. It significantly reduces the product development cycle and time-to-market

Software Package Features & Benefits
- Call Control Package: Call control functions
- Basic Test Package: Call control functions, GR909 Equivalent Line Testing
- Advanced Test Package: Call control functions, GR844 Equivalent Line Testing
- Advanced Test Plus Package: Call control functions, GR844 Equivalent Line Testing, Increased Accuracies, Additional tests

Additional Features
  • Aggregated call control lowers demand on host microprocessor- 128 channels of call control
  • Provides expanded line and circuit testing inconjunction with Microchip's NGCC chipset- Provides 4 channels of simultaneous line testing
  • Software interface using VoicePath? API-II
  • Software downloadable, field upgradeable, expandable
  • Serial and parallel host controller interface options
  • Complete control of up to 16 Octal NGSLAC (Le79238) devices
  • Two slave PCM highway ports
  • Internal PLL and hardware network timing recovery forcreating analog sampling clocks
  • 3.3 V compliant I/O
Parametrics
Name
Value
Application
NGCC Voice Control Processor
Series
VE792
Loop Length
Long
SOC Interface
PCM/SPI/GPI
Number of Ports
128

Documents

Jump to:

Data Sheets


Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE79128KVC
0.510000
3.111111
128
TQFP
14x14x1mm
Matte Tin
e3
LE79128KVCT
0.510000
1.760000
128
TQFP
14x14x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
