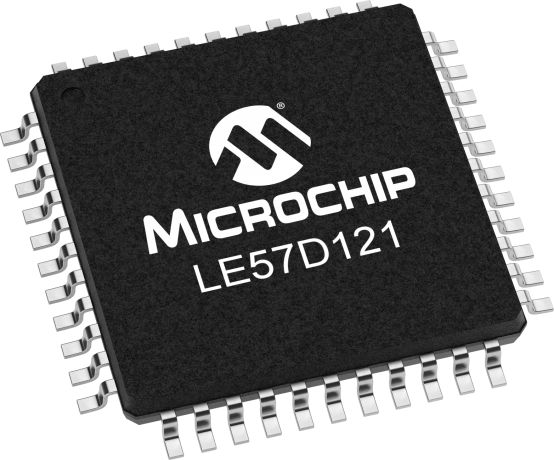

LE57D121

Dual Channel SLIC

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The innovative Le57D121 dual-channel SLIC device is designed for high-density POTS applications requiring a small-footprint, low-power SLIC device. By combining a fully featured line interface of two channels into one SLIC device, the Le57D121 device enables the design of a low-cost, high performance, and fully programmable line interface for multiple country applications worldwide, including Ground Start and metering capability. The on-chip Thermal Management (TMG) feature allows for significantly reduced power dissipation on the device. Optional dual battery operation to reduce total power consumption is also available. The device is offered in a thermally efficient, space-saving 44-pin eTQFP package. The 12 x 12 mm footprint allows designers to make a dramatic increase in the density of lines on a board. The Le57D121 device is also designed to significantly reduce the number of external components required for line card design. Microchip offers a range of compatible SLAC devices that perform the codec function in a line card. In particular, the Quad and Octal SLAC devices combined with the Le57D121 device provides a programmable line circuit that can be configured for varying requirements.

Additional Features
  • Dual-Channel SLIC device with small footprint
  • Loop start and Ground start support
  • +5 V and battery supply required
  • Optional dual battery operation
  • -39 V to -60 V battery operation
  • Supplies more than 20 mA into 2000 Ohm from -48 V
  • Programmable current limit
  • On-chip Thermal Management (TMG) feature in all Active states
  • Low standby power (24 mW per channel)
  • Supports 2.0 Vrms metering applications
  • Control states: Active and Active Metering (Normal and Reverse Polarity), Standby, Tip Open and Disconnect
  • 3.3 V compatible to logic control inputs
  • Power up in Disconnect state
  • On-hook transmission in Active states
  • Per-channel fault detection and indication
  • Per-channel thermal shutdown
  • Programmable Off Hook and Ground Start thresholds.
  • Programmable ring-trip detect threshold
  • Footprint compatible with Microchip's Le57D111 Dual SLIC
Parametrics
Name
Value
Application
Access Network SLIC
Series
VE580
Loop Length
Long
Battery Topology
External
Output Voltage (V) max
60
Number of Ports
2

Documents

Jump to:

Data Sheets


317KB

Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE57D121BTC
0.289900
1.850000
44
TQFP
10x10x1mm
Matte Tin
e3
LE57D121BTCT
0.289900
1.080000
44
TQFP
10x10x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
