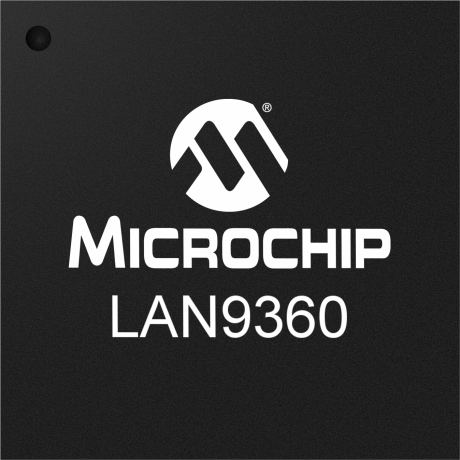

product primary image

AVB Audio Endpoint

LAN9360

Status: In Production

Features:

  • AVB out-of-the-Box
  • gPTP - IEEE802.1AS
  • IEEE1722 AVTP Talker and Listener
  • IEEE1733 RTP Talker and Listener
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

AVB endpoints components are Intelligent Ethernet Controllers that integrate AVB protocols and a set of additional features to enable engineers designing AVB capable products in no time and with almost no engineering resources needed. Endpoints are designed and validated against IEEE, Avnu and IETF standards, providing full compliance and interoperability out-of-the-box.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

For additional product information (NDA required), please contact Microchip Support or Sales.

Additional Features
  • AVB out-of-the-Box
  • gPTP - IEEE802.1AS
  • IEEE1722 AVTP Talker and Listener
  • IEEE1733 RTP Talker and Listener
  • Supports up to 40 Audio Channel
  • Supports up to 7 AVB Audio Streams
  • Security: HDCP, secure boot, secure update
Parametrics
Name
Value
Ethernet Bandwidth
100 Mbps / 10 Mbps
# Ethernet Ports
1
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
105
Interface
I2S/TDM, I2C, SPI, RMII

Documents

Jump to:

Product Brief


Development tools data is currently unavailable.

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10Mbps
SPI
$2.23
10/100Mbps
SPI, Parallel
$2.73
10/100Mbps
SPI, Parallel
$2.95
10/100Mbps / FX
8-bit or 16-bit
$4.17
10/100Mbps
8-bit or 16-bit
$14.76
10/100Mbps
8/16/32-bit, MII
$10.65
10/100Mbps
8/16/32-bit
$5.90
10/100Mbps
8-/16-/32-bit or SPI
$2.54
10/100/1000Mbps
8/16-bit
$21.07
10/100Mbps
32 bit Host Bus
$18.24
10/100Mbps
HSIC
$5.87
10/100Mbps
16 bit Host Bus
$7.24
10/100Mbps
16-bit or 32-bit
$9.09
10/100Mbps
16 bit Host Bus
$9.27
10/100Mbps
16-bit or 32-bit
$14.83
10/100Mbps
16-bit or 32-bit

10/100Mbps
16 bit PCMCIA and Host Bus
$15.04
10/100Mbps
16-bit or 32-bit
$18.21
10Mbps
16 bit PCMCIA and Host Bus
$12.68
10/100Mbps
16 bit Host Bus
$5.72
10/100Mbps
16 bit
$6.89
10/100Mbps
16 bit Host Bus, MII
$8.16
10/100Mbps
16 bit Host Bus, MII
$11.74
10/100Mbps
32 bit Host Bus
$14.71
10/100Mbps
16 bit Host Bus
$4.11
10/100Mbps
16 bit Host Bus
$5.14
10/100Mbps
8/16-bit Host Bus or SPI
$4.06
100 Mbps / 10 Mbps
I2S/TDM, I2C, SPI, RMII
$9.48
10/100Mbps
32 bit PCI 3.0
$3.17

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LAN9360A-I/CQB-100
0.139600
0.696154
100
TFBGA
9x9x1.2mm
SAC105
e8
LAN9360A-I/CQBT-100
0.139600
0.515000
100
TFBGA
9x9x1.2mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
