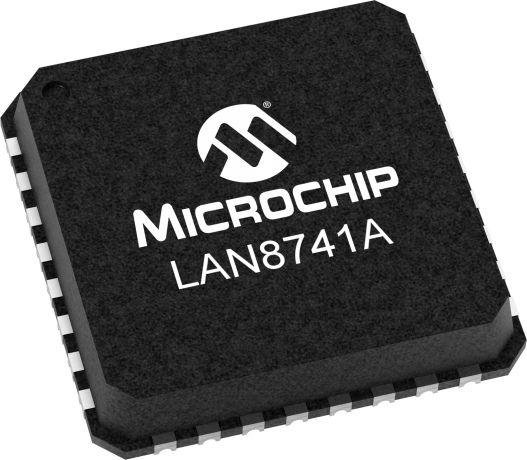

product primary image

LAN8741A

10/100 Base-T/TX Ethernet Transceiver with Power Saving Features

Status: In Production

Features:

  • Single-Chip Ethernet PHY
  • Flexible power management architecture
  • LVCMOS variable I/O voltage range +1.6V to +3.6V
  • Integrated 1.2V regulator with disable feature
  • Energy Efficient Ethernet (IEEE 802.3az)
  • Deterministic latency
  • Uses a low-cost 25MHz crystal for RMII mode to drive 50MHz output
  • HP Auto-MDIX support
  • Supports commercial (0° to 70°C) and industrial (-40° to 85°C) temperature ranges
  • 32-pin, 5x5mm and 24-pin, SQFN, RoHS-compliant packages
  • Set-top Boxes
  • DVRs/PVRs
  • Digital TVs/iPTVs
  • Printers
  • IP and Video Phones
  • Industrial
  • Embedded/Telecom
  • Test/Measurement Instrumentation
  • Wireless Access Points
  • Power over Ethernet (PoE)
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Microchip's LAN8741A/LAN8741Ai are the latest generation of low-power, 10/100 Fast Ethernet PHYs featuring Energy Efficient Ethernet (IEEE 802.3az) as well as system sleep modes for improved power savings. The LAN8741A/LAN8741Ai feature a deterministic loop back delay, assuring real-time system performance. These devices are available in both commercial (0° to 70°C) and industrial (-40° to 85°C) temperature ranges. The LAN8741A/LAN8740Ai are well-suited for Consumer, Embedded and Industrial applications. Additionally, these devices support auto-negotiation, auto-polarity correction, HP Auto-MDIX† and are compliant with IEEE 802.3 and 802.3u standards. Microchip also offers its complimentary and confidential LANCheck® online design review services to customers who select our products for their application design-in.*

†HP Auto-MDIX eliminates the need for special "crossover" cables when connecting LAN devices together.


*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features

    Highlights

    • Single-Chip Ethernet PHY
    • Comprehensive flexPWR® technology
      • Flexible power management architecture
      • LVCMOS variable I/O voltage range +1.6V to +3.6V
      • Integrated 1.2V regulator with disable feature
      • Energy Efficient Ethernet (IEEE 802.3az)
      • Deterministic latency
    • Uses a low-cost 25MHz crystal for RMII mode to drive 50MHz output
    • HP Auto-MDIX support
    • Supports commercial (0° to 70°C) and industrial (-40° to 85°C) temperature ranges
    • 32-pin, 5x5mm and 24-pin, SQFN, RoHS-compliant packages

    Target Applications

    • Set-top Boxes
    • DVRs/PVRs
    • Digital TVs/iPTVs
    • Printers
    • IP and Video Phones
    • Industrial
    • Embedded/Telecom
    • Test/Measurement Instrumentation
    • Wireless Access Points
    • Power over Ethernet (PoE)
Parametrics
Name
Value
Description
Small-Footprint, 10/100 PHY
Ethernet Bandwidth
10/100Mbps
LEDs
2
# of Ethernet Ports
1
Interface
MII/RMII
EEE
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
HP-Auto MDIX
Yes
Interface1
MII/RMII
Copper Support
Yes
Supply Voltage (V)
3.3
Internal Regular
Yes
MAC I/O Voltage
1.8/3.3
802.3az
Yes

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
LAN8740/LAN8741 High-Speed 10/100 EEE enabled Ethernet Transceiver Customer Eval
LAN8740/LAN8741 High-Speed 10/100 EEE enabled Ethernet Transceiver Customer Eval ( EVB8740 )

The EVB8740 is a PHY Evaluation Board EVB that interfaces a MAC controller to the LAN8740 Ethernet PHY via a standard 40-pin MII connector and supports Energy Efficient Ethernet IEE802.3az along with Wake-on-LAN and Cable Diagnostics. The LAN8740 is connected to an RJ-45/Integrated Magnetics Ethernet Jack for 10/100 connectivity.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LAN8741A-EN
0.067800
0.714286
32
QFN
5x5x0.9mm
Matte Tin
e3
LAN8741A-EN-TR
0.067800
0.185758
32
QFN
5x5x0.9mm
Matte Tin
e3
LAN8741AI-EN
0.067800
0.714286
32
QFN
5x5x0.9mm
Matte Tin
e3
LAN8741AI-EN-TR
0.067800
0.185758
32
QFN
5x5x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
