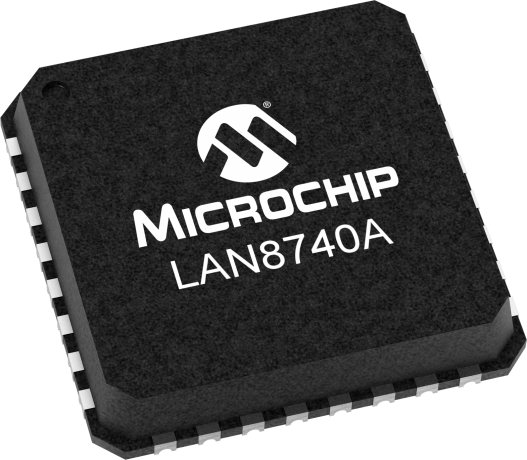

LAN8740A

10/100 Base-T/TX Ethernet Transceiver with Power Saving Features and Cable Diagnostics

Status: In Production

Features:

  • Single-Chip Ethernet PHY
  • Flexible power management architecture
  • LVCMOS variable I/O voltage range +1.6V to +3.6V
  • Integrated 1.2V regulator with disable feature
  • Energy Efficient Ethernet (IEEE 802.3az)
  • Cable diagnostics
  • Deterministic latency
  • Uses a low-cost 25MHz crystal for RMII mode to drive 50MHz output
  • Wake-On-LAN
  • HP Auto-MDIX support
  • Supports commercial (0° to 70°C) and industrial (-40° to 85°C) temperature ranges
  • 32-pin, 5x5mm SQFN, RoHS-compliant packages
  • Set-top Boxes
  • DVRs/PVRs
  • Digital TVs/iPTVs
  • Printers
  • IP and Video Phones
  • Industrial Networks
  • Embedded/Telecom
  • Test/Measurement Instrumentation
  • Wireless Access Points
  • Power over Ethernet (PoE)
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

Microchip's LAN8740A/LAN8740Ai are the latest generation of low-power, 10/100 Fast Ethernet PHYs featuring Energy Efficient Ethernet (IEEE 802.3az) and Wake-On-LAN functionality, which provide system sleep modes for improved power savings. The LAN8740A/LAN8740Ai feature deterministic loop back delay, assuring real-time system performance as well as cable diagnostics which reduce network installation costs. These devices are available in both commercial (0° to 70°C) and industrial (-40° to 85°C) temperature ranges. The LAN8740A/LAN8740Ai are well-suited for Consumer, Embedded and Industrial applications. Additionally, these devices support auto-negotiation, auto-polarity correction, HP Auto-MDIX† and are compliant with IEEE 802.3 and 802.3u standards. Microchip also offers its complimentary and confidential LANCheck® online design review services free of charge to customers who select our products for their application design-in.*

†HP Auto-MDIX eliminates the need for special "crossover" cables when connecting LAN devices together.



*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.


Additional Features

    Highlights

    • Single-Chip Ethernet PHY
    • Comprehensive flexPWR® technology
      • Flexible power management architecture
      • LVCMOS variable I/O voltage range +1.6V to +3.6V
      • Integrated 1.2V regulator with disable feature
    • Energy Efficient Ethernet (IEEE 802.3az)
    • Cable diagnostics
    • Deterministic latency
    • Uses a low-cost 25MHz crystal for RMII mode to drive 50MHz output
    • Wake-On-LAN
    • HP Auto-MDIX support
    • Supports commercial (0° to 70°C) and industrial (-40° to 85°C) temperature ranges
    • 32-pin, 5x5mm SQFN, RoHS-compliant packages

    Target Applications

    • Set-top Boxes
    • DVRs/PVRs
    • Digital TVs/iPTVs
    • Printers
    • IP and Video Phones
    • Industrial Networks
    • Embedded/Telecom
    • Test/Measurement Instrumentation
    • Wireless Access Points
    • Power over Ethernet (PoE)
Parametrics
Name
Value
Description
Small-Footprint, 10/100 PHY Family Featuring Energy Efficient Ethernet and Wake-On-LAN
Ethernet Bandwidth
10/100Mbps
LEDs
2
# of Ethernet Ports
1
Interface
MII/RMII
EEE
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
HP-Auto MDIX
Yes
Wake-on-LAN
Yes
Interface1
MII/RMII
Copper Support
Yes
Internal Regular
Yes
MAC I/O Voltage
1.8/2.5/3.3
Cable Diagnostics
Yes
802.3az
Yes

Documents

Jump to:

IBIS

Design Checklist

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
LAN8740/LAN8741 High-Speed 10/100 EEE enabled Ethernet Transceiver Customer Eval
LAN8740/LAN8741 High-Speed 10/100 EEE enabled Ethernet Transceiver Customer Eval ( EVB8740 )

The EVB8740 is a PHY Evaluation Board EVB that interfaces a MAC controller to the LAN8740 Ethernet PHY via a standard 40-pin MII connector and supports Energy Efficient Ethernet IEE802.3az along with Wake-on-LAN and Cable Diagnostics. The LAN8740 is connected to an RJ-45/Integrated Magnetics Ethernet Jack for 10/100 connectivity.

Learn More
Add To Cart
IoT Ethernet Monitoring Kit powered by Medium One
IoT Ethernet Monitoring Kit powered by Medium One ( DM990101 )

From Sensor to Cloud. The DM990101 IoT Ethernet Monitoring kit powered by Medium One (Software-as-a-Service) offers an all-in-one IoT package. To address Industrial Internet of Things (IoT) projects, the Ethernet technology becomes the most reliable and stable connectivity. This IoT kit uses an Ethernet LAN8740A and comes...

Learn More
Add To Cart
