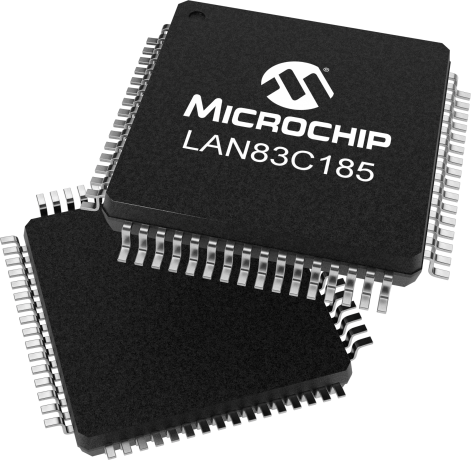

LAN83C185

10/100 Base-T/TX Physical Layer Transceiver

Status: Not Recommended for new designs

Features:

  • Single Chip Ethernet PHY
  • Fully Compliant with IEEE 802.3/802.3u Standards
  • 10BASE-T and 100BASE-TX Support
  • Supports Auto-Negotiation and Parallel Detection
  • Automatic Polarity Correction
  • Integrated DSP with Adaptive Equalizer
  • Baseline Wander (BLW) Correction
  • Media Independent Interface (MII)
  • 802.3u Compliant Register Functions
  • Vendor Specific Register Functions
  • Comprehensive Power Management Features
  • General Power-down Mode
  • Energy Detect Power-down Mode
  • Low profile 64-pin TQFP RoHS compliant package
  • Single +3.3V Supply with 5V Tolerant I/O
  • 0.18 Micron Technology
  • Low Power Consumption
  • Operating Temperature 0° C to 70° C
  • Internal +1.8V Regulator
  • LAN on Motherboard
  • 10/100 PCMCIA/CardBus Applications
  • Embedded Telecom Applications
  • Video Record/Playback Systems
  • Cable Modems and Set-Top Boxes
  • Digital Televisions
  • Wireless Access Points
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The Microchip LAN83C185 is a low-power, highly integrated analog interface IC for high-performance embedded Ethernet applications. The LAN83C185 requires only a single +3.3V supply.

The LAN83C185 consists of an encoder/decoder, scrambler/descrambler, transmitter with wave-shaping and output driver, twisted-pair receiver with on-chip adaptive equalizer and baseline wander (BLW) correction, clock and data recovery, and Media Independent Interface (MII).

The LAN83C185 is fully compliant with IEEE 802.3/802.3u standards and supports both 802.3u-compliant and vendor-specific register functions. It contains a full-duplex 10BASE-T/100BASE-TX transceiver and supports 10 Mbps (10BASE-T) operation on Category 3 and Category 5 unshielded twisted-pair cable, and 100 Mbps (100BASE-TX) operation on Category 5 unshielded twisted-pair cable.


*The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Please consider this device LAN8710A, LAN8720A, LAN8740A, LAN8742A

Additional Features

    Note: The LAN83C185 is not recommended for new designs. The LAN8710A/LAN8720A are the suggested replacement devices for this product.

    Features

    • Single Chip Ethernet PHY
    • Fully Compliant with IEEE 802.3/802.3u Standards
    • 10BASE-T and 100BASE-TX Support
    • Supports Auto-Negotiation and Parallel Detection
    • Automatic Polarity Correction
    • Integrated DSP with Adaptive Equalizer
    • Baseline Wander (BLW) Correction
    • Media Independent Interface (MII)
    • 802.3u Compliant Register Functions
    • Vendor Specific Register Functions
    • Comprehensive Power Management Features
    • General Power-down Mode
    • Energy Detect Power-down Mode
    • Low profile 64-pin TQFP RoHS compliant package
    • Single +3.3V Supply with 5V Tolerant I/O
    • 0.18 Micron Technology
    • Low Power Consumption
    • Operating Temperature 0° C to 70° C
    • Internal +1.8V Regulator

    Applications

    • LAN on Motherboard
    • 10/100 PCMCIA/CardBus Applications
    • Embedded Telecom Applications
    • Video Record/Playback Systems
    • Cable Modems and Set-Top Boxes
    • Digital Televisions
    • Wireless Access Points
Parametrics
Name
Value
Description
High Performance Single Chip Low Power 10/100 Mbps Ethernet Physical Layer Transceiver
Ethernet Bandwidth
10/100Mbps
LEDs
4
# of Ethernet Ports
1
Interface
MII
Temp. Range Max. (°C)
70
Interface1
MII
Copper Support
Yes
Supply Voltage (V)
3.3
Internal Regular
Yes
MAC I/O Voltage
3.3

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LAN83C185-JT
0.368300
1.087500
64
LQFP
10x10x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
