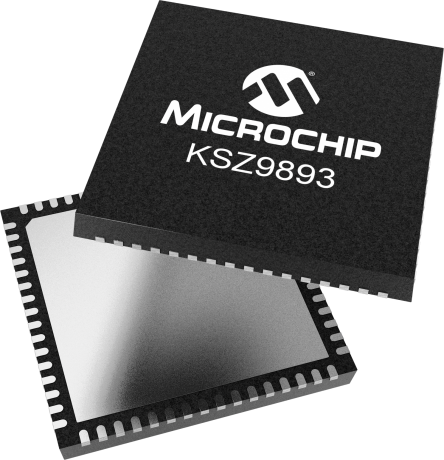

KSZ9893

3-Port Gigabit Ethernet Switch with RGMII/MII

Status: In Production

Features:

  • Non-blocking wire-speed Ethernet switching fabric
  • Full-featured forwarding and filtering control, including Access Control List (ACL) filtering
  • Full VLAN and QoS support
  • IEEE 802.1X port-based authentication support
  • Flexible management interface options: SPI, I2C, MIIM, and in-band management via any port
  • Commercial/Industrial temperature range support
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The KSZ9893 is a fully integrated layer 2, managed, three-port gigabit Ethernet switch with numerous advanced features. Two of the three ports incorporate 10/100/1000 Mbps PHYs. The other port has interfaces that can be configured as RGMII, MII or RMII. This port may connect directly to a host processor or to an external PHY.

Full register access is available by SPI or I2C interfaces, and by optional in-band management via any of the data ports. PHY register access is provided by a MIIM interface.

Security features include support for IEEE 802.1X port-based authentication and Access Control List (ACL) filtering.

An assortment of power-management features including Energy-Efficient Ethernet (EEE) have been designed in to satisfy energy efficient environments.

Looking for a Linux® Host Processor? Try the SAMA5D3

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
  • Highlights
    • Non-blocking wire-speed Ethernet switching fabric
    • Full-featured forwarding and filtering control, including Access Control List (ACL) filtering
    • Full VLAN and QoS support
    • Two ports with integrated 10/100/1000BASE-T PHYs
    • One port with 10/100/1000 Ethernet MAC and configurable RGMII/MII/RMII interface
    • IEEE 802.1X port-based authentication support
    • EtherGreenTM power management features, including low power standby and IEEE 802.3az
    • Flexible management interface options: SPI, I2C, MIIM, and in-band management via any port
    • Commercial/Industrial temperature range support
    • 64-pin VQFN (8 x 8mm) lead-free package
  • Switch Management Capabilities
    • 10/100/1000Mbps Ethernet switch basic functions: frame buffer management, address look-up table, queue management, MIB counters
    • Non-blocking store-and-forward switch fabric assures fast packet delivery by utilizing 4096 entry forwarding table with 128kByte frame buffer
    • Jumbo packet support up to 9000 bytes
    • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port
    • MIB counters for fully-compliant statistics gathering 34 counters per port
    • Tail tagging mode (one byte added before FCS) support at host port to inform the processor which ingress port receives the packet and its priority
    • Loopback modes for remote failure diagnostics
    • Multiple spanning tree protocol (MSTP) support
    • Rapid spanning tree protocol (RSTP) support for topology management and ring/linear recovery
  • Advanced Switch Capabilities
    • IEEE 802.1Q VLAN support for 128 active VLAN groups and the full range of 4096 VLAN IDs
    • IEEE 802.1p/Q tag insertion/removal on per port basis
    • VLAN ID on per port or VLAN basis
    • IEEE 802.3x full-duplex flow control and half-duplex back pressure collision control
    • IEEE 802.1X (Port-Based Network Access Control)
    • IGMP v1/v2/v3 snooping for multicast packet filtering
    • IPv6 multicast listener discovery (MLD) snooping
    • IPv4/IPv6 QoS support, QoS/CoS packet prioritization
    • 802.1p QoS packet classification with 4 priority queues
    • Programmable rate limiting at ingress/egress ports
    • Broadcast storm protection
    • Four priority queues with dynamic packet mapping for IEEE 802.1p, IPv4 DIFFSERV, IPv6 Traffic Class
    • MAC filtering function to filter or forward unknown unicast, multicast and VLAN packets
    • Self-address filtering for implementing ring topologies
  • Comprehensive Configuration Registers Access
    • High-speed 4-wire SPI (up to 50MHz), I2C interfaces provide access to all internal registers
    • MII Management (MIIM, MDC/MDIO 2-wire) Interface provides access to all PHY registers
    • I/O pin strapping facility to set certain register bits from I/O pins at reset time
    • In-band management via any of the three ports
    • On-the-fly configurable control registers
  • Power Management
    • IEEE 802.3az Energy Efficient Ethernet (EEE)
    • Energy detect power-down mode on cable disconnect
    • Dynamic clock tree control
    • Unused ports can be individually powered down
    • Full-chip software power-down
    • Wake-on-LAN (WoL) standby power mode
Parametrics
Name
Value
Description
3-Port Gigabit Ethernet Switch with RGMII
Ethernet Bandwidth
10/100/1000Mbps
MAC
3
PHY
2
TX/RX RAM Buffer(Bytes)
n/a
Interrupt Pin
Yes
LEDs
4
Op. Voltage (V)
3.3
Interface
MII/RMII/RGMII
I/O Pins
4
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
# of Ports
3
Managed
Yes
Copper Support
10/100/1000 (2)
MII
Yes
RMII
Yes
RGMII
Yes
Supply Voltage (V)
3.3
Vdd I/O (V)
1.8/2.5/3.3
LinkMD Cable Diag
Yes
On-Chip Termination
Yes
ESD Rating (KV)
6
Smart Power Adjust
Yes
Largest Pkt-Size Bytes
9000
IPV6
Yes
# of VLAN
128
Flow Ctrl
Yes
Rate Limiting
Yes
Rapid Spanning Tree
Yes
Static MAC Addr
Yes

Documents

Jump to:

Data Sheet

11/27/2018
1318KB

Design Checklist

IBIS

05/10/2018
332KB

Product Brief

01/03/2017
225KB

User Guides

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
  • Application Examples
Demo & Evaluation Boards
SAMA5D3-Ethernet Development System
SAMA5D3-Ethernet Development System ( DM320114 )

The Microchip SAMA5D3 Ethernet Development System board (EDS) board is an MPU-based platform for evaluating Ethernet switch and PHY products. Compatible switch and PHY evaluation boards connect to the EDS board via either an RGMII connector or an RMII connector. These daughter boards are available separately. The EDS board is not intended for stand-alone use and has no Ethernet capabilities when...

Learn More
Add To Cart
KSZ9893 Plug-in Evaluation Board
KSZ9893 Plug-in Evaluation Board ( EVB-KSZ9893 )

The EVB-KSZ9893 evaluation board is a plug-in card that interfaces directly with a mat- ing Microchip host processor or controller board, such as the SAMA5D3 Ethernet Development System (EDS) board. It features the KSZ9893, a highly integrated net- working device that incorporates a layer-2+ managed Gigabit Ethernet switch, two 10BASE-T/100BASE-TX/ 1000BASE-T physical layer transceivers (PHYs) and...
