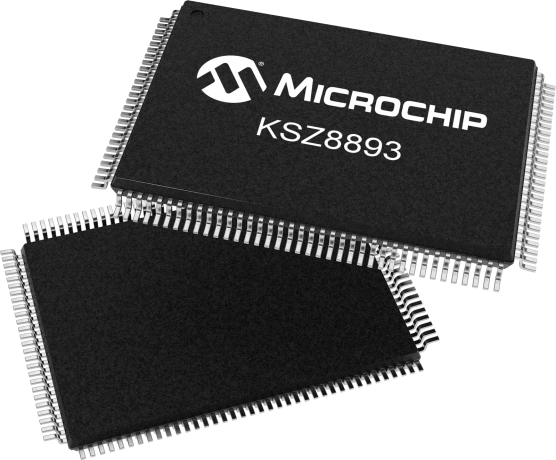

KSZ8893

3-Port 10/100 Managed Ethernet Switch with Fiber Support

Status: Not Recommended for new designs

Features:

  • Proven Integrated 3-Port 10/100 Ethernet Switch
  • Comprehensive Configuration Register Access
  • QoS/CoS Packet Prioritization Support
  • Advanced Switch Features
  • Low Latency Support
  • Switch Monitoring Features
  • Low Power Dissipation
  • Industrial Temperature Range: -40°C to +85°C
  • Available in 128-Pin PQFP and 100-ball LFBGA, Lead- free package
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The KSZ8893MQL/MBL, a highly integrated layer 2 managed switch, is designed for low port count, cost-sensitive 10/100 Mbps switch systems.

It offers an extensive feature set that includes rate limiting, tag/port-based VLAN, QoS priority, management, management information base (MIB) counters, RMII/MII/SNI, and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications.

The KSZ8893MQL/MBL contains two 10/100 transceivers with patented mixed-signal low-power technology, three media access control (MAC) units, a high-speed non-blocking switch fabric, a dedicated address lookup engine, and an on-chip frame buffer memory. Both PHY units support 10BASE-T and 100BASETX. In addition, one PHY unit supports 100BASE-FX.

The KSZ8893MQL/MBL comes in a lead-free package, and is also available in industrial temperature-grade KS8893MQLI/MBLI and Automotive-grade KSZ8893 MQL AM.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Please consider this device KSZ8863, KSZ8873

Additional Features
    • Proven Integrated 3-Port 10/100 Ethernet Switch
    • Comprehensive Configuration Register Access
    • QoS/CoS Packet Prioritization Support
    • Advanced Switch Features
    • Low Latency Support
    • Switch Monitoring Features
    • Low Power Dissipation
    • Industrial Temperature Range: -40°C to +85°C
    • Available in 128-Pin PQFP and 100-ball LFBGA, Lead- free package
Parametrics
Name
Value
Description
3-Port 10/100 Ethernet Switch
Ethernet Bandwidth
10/100Mbps
MAC
3
PHY
2
TX/RX RAM Buffer(Bytes)
n/a
Interrupt Pin
Yes
LEDs
8
Op. Voltage (V)
3.3
Interface
MII/RMII
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
Automotive
Yes
Managed
Yes
Copper Support
10/100 (2)
Fiber Support
100FX,FL,SX
MII
Yes
RMII
Yes
SNI
Yes
Supply Voltage (V)
3.3
Internal LDO
Yes
Vdd I/O (V)
2.5/3.3
LinkMD Cable Diag
Yes
Repeater Mode
Yes
ESD Rating (KV)
n/a
Largest Pkt-Size Bytes
1916
IPV6
Yes
# of VLAN
16
Flow Ctrl
Yes
Rate Limiting
Yes
Static MAC Addr
Yes
