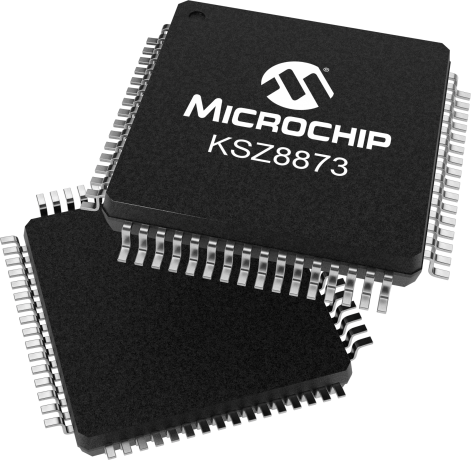

KSZ8873

3-Port 10/100 Managed Ethernet Switch with Fiber Support

Status: In Production

Features:

  • Advanced Switch Features
  • Comprehensive Configuration Register Access
  • QoS/CoS Packet Prioritization Support
  • Proven Integrated 3-Port 10/100 Ethernet Switch
  • Switch Monitoring Features
  • Low Power Dissipation
  • Industrial Temperature Range: –40°C to +85°C
  • Available in 64-Pin LQFP, Lead-free package
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The KSZ8873MML/MLL/FLL/RLL are highly integrated 3-port switch on a chip ICs in a small footprint. They are designed to enable a new generation of low port count, cost-sensitive and power efficient 10/100Mbps switch systems.

Low power consumption, advanced power management and sophisticated QoS features (e.g., IPv6 priority classification support) make these devices ideal for IPTV, IP-STB, VoIP, automotive and industrial applications. The KSZ8873 family is designed to support the GREEN requirement in today’s switch systems. Advanced power management schemes include hardware power down, software power down, per port power down and the energy detect mode that shuts downs the transceiver when a port is idle.

KSZ8873MML/MLL/FLL/RLL also offer a by-pass mode. In this mode, the processor connected to the switch through the MII interface can be shut down without impacting the normal switch operation.

The configurations provided by the KSZ8873 family enables the flexibility to meet requirements of different applications:

KSZ8873MLL - Two 10/100BASE-T/TX transceivers and one MII interface
KSZ8873RLL - Two 10/100BASE-T/TX transceivers and one RMII interface
KSZ8873FLL - Two 100BASE-FX transceivers and one MII interface
KSZ8873MML - Two MII interfaces and one 10/100BASE-T/TX transceivers

The device is available in RoHS-compliant 64-pin LQFP package. Industrial-grade and Automotive-grade are also available.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • Advanced Switch Features
    • Comprehensive Configuration Register Access
    • QoS/CoS Packet Prioritization Support
    • Proven Integrated 3-Port 10/100 Ethernet Switch
    • Switch Monitoring Features
    • Low Power Dissipation
    • Industrial Temperature Range: –40°C to +85°C
    • Available in 64-Pin LQFP, Lead-free package
Parametrics
Name
Value
Description
3-Port 10/100 Ethernet Switch with MII/MII(2)/RMII
Ethernet Bandwidth
10/100Mbps
MAC
3
PHY
2
TX/RX RAM Buffer(Bytes)
n/a
Interrupt Pin
Yes
LEDs
4
Op. Voltage (V)
3.3
Interface
MII/RMII/MII(2)
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
# of Ports
3
Dual MII Support
Yes
Automotive
Yes
Managed
Yes
Copper Support
10/100 (2)
Fiber Support
100FX (2)
MII
Yes (2)
RMII
Yes
Supply Voltage (V)
3.3
Internal LDO
Yes
Vdd I/O (V)
1.8/2.5/3.3
LinkMD Cable Diag
Yes
ESD Rating (KV)
3
Largest Pkt-Size Bytes
1916
IPV6
Yes
# of VLAN
16
Flow Ctrl
Yes
Rate Limiting
Yes
Rapid Spanning Tree
Yes
Static MAC Addr
Yes

Documents

Jump to:

Errata

Supporting Collateral

Board Design Files

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
KSZ8873FLL EVAL BOARD
KSZ8873FLL EVAL BOARD ( KSZ8873FLL-EVAL )
(Not Recommended for new design)

The KSZ8873MLL/FLL/RLL is Micrel’s third generation fully integrated 3-port switch. The two PHY units of KSZ8873MLL/RLL support 10BASE-T and 100BASE-TX. The KSZ8873FLL supports 100BASE-FX. The devices have been designed for cost sensitive systems, however, still offer a multitude of features, such as switch management, port and tag based VLAN, QoS priority, one MII interfaces and CPU control and...

Learn More
KSZ8873MLL EVAL BOARD
KSZ8873MLL EVAL BOARD ( KSZ8873MLL-EVAL )

The KSZ8873MLL/FLL/RLL is Micrel’s third generation fully integrated 3-port switch. The two PHY units of KSZ8873MLL/RLL support 10BASE-T and 100BASE-TX. The KSZ8873FLL supports 100BASE-FX. The devices have been designed for cost sensitive systems, however, still offer a multitude of features, such as switch management, port and tag based VLAN, QoS priority, one MII interfaces and CPU control and...

Learn More
Add To Cart
Software Libraries
KSZ8863 Linux driver for revision 3.14 tared

Software for KSZ8863 Linux revision 3.14 in tar file.

Learn More
KSZ8863 Linux driver for revision 3.18 tared

KSZ8863 Linux software for revision 3.18 tar file

Learn More
KSZ8863 Linux driver for revision 3.3 tared

KSZ8863 Software driver for Linux revision 3.3 tar file

Learn More
