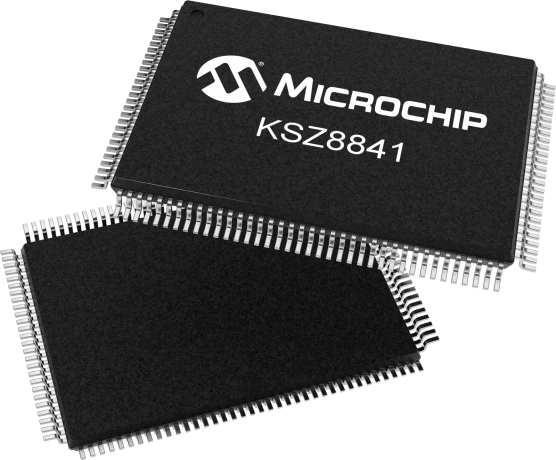

KSZ8841

10/100 Base-T/TX Ethernet Controller with PCI and Host Bus Interface

Status: Not Recommended for new designs

Features:

  • • Supports IEEE 802.3x full-duplex flow control and half-duplex backpressure collision flow control
  • • Supports burst data transfers
  • • 8KB internal memory for RX/TX FIFO buffers
  • • Early TX/RX functions to minimize latency through the device
  • • Optional to use external serial EEPROM configuration
  • • Single 25MHz reference clock for both PHY and MAC
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The KSZ8841-series of single-port controllers includes PCI and non-PCI CPU interfaces.

The KSZ8841-PMQL datasheet describes PCI CPU interface chips. KSZ8841-PMQL is PQFP package chip. For information on the non-PCI controller, refer to the KSZ8841-MQL datasheet.

The KSZ8841-PMQL is a single port Fast Ethernet MAC chip with 32-bit/33MHz PCI processor interface.  Fully compliant with IEEE 802.3u, it is also available in industrial temperature grades. The KSZ8841MQL has 32-, 16- or 8-bit generic host processor interface.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Please consider this device KSZ8851

Additional Features

• Supports 10BASE-T/100BASE-TX

• Supports IEEE 802.3x full-duplex flow control and half-duplex backpressure collision flow control

• Supports burst data transfers

• 8KB internal memory for RX/TX FIFO buffers

• Early TX/RX functions to minimize latency through the device

• Optional to use external serial EEPROM configuration

• Single 25MHz reference clock for both PHY and MAC

Parametrics
Name
Value
Description
10/100 Ethernet Controller with Host Bus and PCI Interface
Ethernet Bandwidth
10/100Mbps
MAC
Yes
PHY
Yes
TX/RX RAM Buffer(Bytes)
8K
Interrupt Pin
1
LEDs
4
# Ethernet Ports
1
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
# of Ether Ports
1
Fiber Support
Yes
Interface
8/16/32-bit
Supply voltage (V)
3.3
Vdd I/O (V)
3.3
LinkMD Cable Diag
Yes
WOL
Yes

Documents

Jump to:

Supporting Collateral

Application Notes

Download All

Development tools data is currently unavailable.

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10Mbps
SPI
$2.03
10/100Mbps
SPI, Parallel
$2.60
10/100Mbps
SPI, Parallel
$2.81
10/100Mbps / FX
8-bit or 16-bit
$3.97
10/100Mbps
8-bit or 16-bit
$13.42
10/100Mbps
8/16/32-bit, MII
$7.99
10/100Mbps
8/16/32-bit
$5.36
10/100Mbps
8-/16-/32-bit or SPI
$2.42
10/100/1000Mbps
8/16-bit
$15.15
10/100Mbps
32 bit Host Bus
$18.24
10/100Mbps
HSIC
$5.87
10/100Mbps
16 bit Host Bus
$6.18
10/100Mbps
16-bit or 32-bit
$8.26
10/100Mbps
16 bit Host Bus
$8.43
10/100Mbps
16-bit or 32-bit
$13.48
10/100Mbps
16-bit or 32-bit
$17.30
10/100Mbps
16 bit PCMCIA and Host Bus
$12.84
10/100Mbps
16-bit or 32-bit
$16.55
10Mbps
16 bit PCMCIA and Host Bus
$10.83
10/100Mbps
16 bit Host Bus
$5.20
10/100Mbps
16 bit
$6.26
10/100Mbps
16 bit Host Bus, MII
$7.42
10/100Mbps
16 bit Host Bus, MII
$10.67
10/100Mbps
32 bit Host Bus
$13.37
10/100Mbps
16 bit Host Bus
$3.74
10/100Mbps
16 bit Host Bus
$4.67
10/100Mbps
8/16-bit Host Bus or SPI
$3.87
10/100Mbps
32 bit PCI 3.0
$3.02

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
KSZ8841-16MBL
1.375000
100
LFBGA
10x10x1.42mm
SAC405
e1
KSZ8841-16MBLI
1.375000
100
LFBGA
10x10x1.42mm
SAC405
e1
KSZ8841-16MVL
0.741000
8.888889
128
LQFP
14x14x1.4mm
Matte Tin
e3
KSZ8841-16MVLI
0.741000
8.888889
128
LQFP
14x14x1.4mm
Matte Tin
e3
KSZ8841-16MVLI-TR
0.741000
1.428000
128
LQFP
14x14x1.4mm
Matte Tin
e3
KSZ8841-16MVL-TR
0.741000
1.428000
128
LQFP
14x14x1.4mm
Matte Tin
e3
KSZ8841-32MVL
0.741000
8.888889
128
LQFP
14x14x1.4mm
Matte Tin
e3
KSZ8841-32MVLI
0.741000
8.888889
128
LQFP
14x14x1.4mm
Matte Tin
e3
KSZ8841-16MQL
1.761500
4.015152
128
PQFP
14x20x2.72mm
Matte Tin
e3
KSZ8841-32MQL
1.761500
4.015152
128
PQFP
14x20x2.72mm
Matte Tin
e3
KSZ8841-PMQL
1.761500
4.015152
128
PQFP
14x20x2.72mm
Matte Tin
e3
KSZ8841-PMQLI
1.761500
4.015152
128
PQFP
14x20x2.72mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
