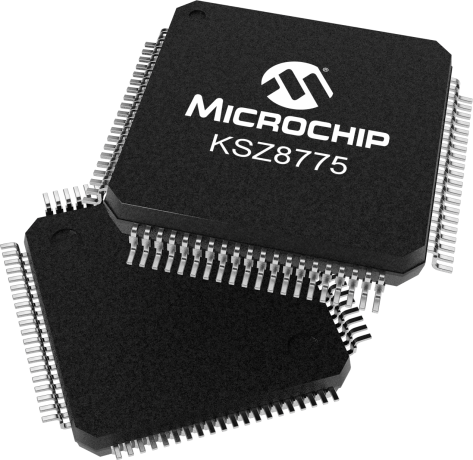

KSZ8775

5-Port 10/100 Managed Ethernet Switch with 2 RGMII/GMII/RMII and Gigabit Uplink

Status: In Production

Features:

  • New generation switch with four MACs, one GMAC (for uplink) and three PHYs that are fully compliant with the IEEE 802.3u standard
  • 10/100Base-T/TX switch system which combines a switch engine, frame buffer management, address lookup table, queue management, MIB counters, MAC, and PHY transceivers
  • Rapid spanning tree support (RSTP) for topology management
  • Microchip''s LinkMD® cable diagnostic capabilities for determining cable opens, shorts, and length
  • IEEE 802.1q VLAN support for up to 128 active VLAN groups (full range 4096 of VLAN IDs)
  • Support 802.1x port-based security and MAC-based authentication via access control lists (ACL)
  • 802.1p, DiffServ-based and Re-mapping of 802.1p priority field, per-port basis on four priority levels
  • 4 priority queues with dynamic mapping for IEEE 802.1P, IPV4 ToS (DiffServ), IPV6 Traffic Class, etc
  • Programmable rate limiting at the ingress and egress ports on a per port basis
  • High-speed SPI (4-wire, up to 50MHz) interface to access all internal registers
  • MII management (MIIM, MDC/MDIO 2 wire) interface to access all PHY registers per IEEE 802.3 specification
  • Control registers configurable on-the-fly
  • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII/RMII
  • MIB counters for fully-compliant statistics gathering (36 MIB counters per port)
  • Full-chip software power-down
  • Energy detect power-down (EDPD)
  • Support IEEE P802.3az Energy Efficient Ethernet (EEE)
  • Wake on LAN (WoL) support
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The KSZ8775CLX is a highly integrated, Layer 2-managed, five-port switch with numerous features designed to reduce system cost. It is intended for cost-sensitive applications requiring three 10/100Mbps copper ports, one RMII on Port 4, and one 10/100/1000Mbps Gigabit uplink port on Port 5.

The KSZ8775CLX incorporates a small package outline, the lowest power consumption with internal biasing, and on-chip termination. Its extensive set of features include enhanced power management, programmable rate limiting and priority ratio, tagged and port-based VLAN, port-based security and ACL rule-based packet filtering technology, QoS priority with four queues, management interfaces, enhanced MIB counters, high-performance memory bandwidth, and a shared memory-based switch fabric with non-blocking support.

The KSZ8775CLX provides support for multiple CPU data interfaces to effectively address both current and emerging fast Ethernet and Gigabit Ethernet applications where the Port 5 GMAC can be configured to any of the RGMII, MII, and RMII modes.

The KSZ8775CLX product is built upon Microchip's industry-leading Ethernet analog and digital technology, with features designed to offload host processing and streamline the overall design.

- Three integrated 10/100Base-T/TX MAC/PHYs
- One integrated 10/100Base-T/TX MAC with RMII interface
- One integrated 10/100/1000Base-T/TX GMAC with selectable RGMII, MII, and RMII interfaces
- Small 80-pin LQFP package

A robust assortment of power management features including energy-efficient Ethernet (EEE), power management event (PME), and wake-on-LAN (WoL) have been designed in to satisfy energy efficient environments. All registers in the MAC/PHY units can be managed through the SPI interface. MIIM PHY registers can be accessed through the MDC/MDIO interface.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
      Integrated 5-port 10/100 Layer-2 switch with Gigabit uplink
      • New generation switch with four MACs, one GMAC (for uplink) and three PHYs that are fully compliant with the IEEE 802.3u standard
      • 10/100Base-T/TX switch system which combines a switch engine, frame buffer management, address lookup table, queue management, MIB counters, MAC, and PHY transceivers
      • Rapid spanning tree support (RSTP) for topology management
      • Microchip's LinkMD® cable diagnostic capabilities for determining cable opens, shorts, and length
      Advanced Switch Capabilities
      • IEEE 802.1q VLAN support for up to 128 active VLAN groups (full range 4096 of VLAN IDs)
      • Support 802.1x port-based security and MAC-based authentication via access control lists (ACL)
      QoS/CoS Packet Prioritization Support
      • 802.1p, DiffServ-based and Re-mapping of 802.1p priority field, per-port basis on four priority levels
      • 4 priority queues with dynamic mapping for IEEE 802.1P, IPV4 ToS (DiffServ), IPV6 Traffic Class, etc
      • Programmable rate limiting at the ingress and egress ports on a per port basis
      Comprehensive Configuration Register Access
      • High-speed SPI (4-wire, up to 50MHz) interface to access all internal registers
      • MII management (MIIM, MDC/MDIO 2 wire) interface to access all PHY registers per IEEE 802.3 specification
      • Control registers configurable on-the-fly
      Switch Monitoring Features
      • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII/RMII
      • MIB counters for fully-compliant statistics gathering (36 MIB counters per port)
      Low Power Dissipation
      • Full-chip software power-down
      • Energy detect power-down (EDPD)
      • Support IEEE P802.3az Energy Efficient Ethernet (EEE)
      • Wake on LAN (WoL) support
Parametrics
Name
Value
Description
5-Port 10/100 Ethernet Switch with 2 RGMII/GMII/RMII
Ethernet Bandwidth
10/100Mbps
MAC
5
PHY
3
TX/RX RAM Buffer(Bytes)
n/a
Interrupt Pin
Yes
LEDs
6
Op. Voltage (V)
3.3
Interface
MII/RMII/RGMII
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
Dual MII Support
Yes
Managed
Yes
Copper Support
10/100 (3)
MII
Yes
RMII
Yes
RGMII
Yes
Supply Voltage (V)
3.3
Vdd I/O (V)
1.8/2.5/3.3
LinkMD Cable Diag
Yes
On-Chip Termination
Yes
ESD Rating (KV)
5KV
Smart Power Adjust
Yes
Largest Pkt-Size Bytes
2000
IPV6
Yes
# of VLAN
128
Flow Ctrl
Yes
Rate Limiting
Yes
Rapid Spanning Tree
Yes
Static MAC Addr
Yes
