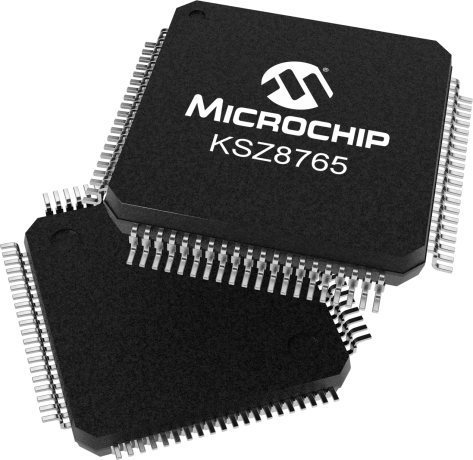

product primary image

KSZ8765

5-Port 10/100 Managed Ethernet Switch with Fiber Support

Status: In Production

Features:

  • Integrated 5-port 10/100 Layer-2 switch with Gigabit uplink
  • New generation switch with four MACs, one GMAC (for uplink) and four PHYs (two 10/100Base-T/TX & two 100Base-FX) that are fully compliant with the IEEE 802.3u standard
  • 10/100Base-T/TX & 100Base-FX switch system which combines a switch engine, frame buffer management, address lookup table, queue management, MIB counters, MAC, and PHY transceivers
  • Rapid spanning tree support (RSTP) for topology management
  • Microchip LinkMD® cable diagnostic capabilities for determining cable opens, shorts, and length
  • Advanced Switch Capabilities
  • IEEE 802.1q VLAN support for up to 128 active VLAN groups (full range 4096 of VLAN IDs)
  • Support 802.1x port-based security and MAC-based authentication via access control lists (ACL)
  • QoS/CoS Packet Prioritization Support
  • 802.1p, DiffServ-based and Re-mapping of 802.1p priority field, per-port basis on four priority levels
  • 4 priority queues with dynamic mapping for IEEE 802.1P, IPV4 ToS (DiffServ), IPV6 Traffic Class, etc
  • Programmable rate limiting at the ingress and egress ports on a per port basis
  • Comprehensive Configuration Register Access
  • High-speed SPI (4-wire, up to 50MHz) interface to access all internal registers
  • MII management (MIIM, MDC/MDIO 2 wire) interface to access all PHY registers per IEEE 802.3 specification
  • Control registers configurable on-the-fly
  • Switch Monitoring Features
  • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII/RMII
  • MIB counters for fully-compliant statistics gathering (36 MIB counters per port)
  • Low Power Dissipation
  • Full-chip software power-down
  • Energy detect power-down (EDPD)
  • Support IEEE P802.3az Energy Efficient Ethernet (EEE)
  • Wake on LAN (WoL) support
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The KSZ8765 is a highly integrated, Layer 2-managed, five-port switch with numerous features designed to reduce overall system cost. It is intended for cost-sensitive applications requiring four 10/100Mbps copper ports and one 10/100/1000Mbps Gigabit uplink port.

The KSZ8765CLX incorporates a small package outline, low power consumption with internal biasing, and on-chip termination. Its extensive set of features include enhanced power management, programmable rate limiting and priority ratio, tagged and port-based VLAN, port-based security and ACL rule-based packet filtering technology, QoS priority with four queues, management interfaces, enhanced MIB counters, high-performance memory bandwidth, and a shared memory-based switch fabric with non-blocking support.

The KSZ8765CLX provides support for multiple CPU data interfaces to effectively address both current and emerging fast Ethernet and Gigabit Ethernet applications where the Port 5 GMAC can be configured to any of the GMII, RGMII, MII, and RMII modes. The KSZ8765CLX is built upon Microchip's industry-leading Ethernet analog and digital technology, with features designed to offload host processing and streamline the overall design.

- Two integrated MAC/PHYs 100Base-FX on Port 1 and Port 2
- Two integrated MAC/PHYs 10/100Base-T/TX on Port 3 and Port 4
- One integrated 10/100/1000Base-T/TX GMAC with selectable GMII, RGMII, MII, and RMII interfaces
- Small 80-pin LQFP package

A robust assortment of power management features including energy-efficient Ethernet (EEE), power management event (PME), and wake-on-LAN (WoL) have been designed in to satisfy energy efficient environments. All registers in the MAC/PHY units can be managed through the SPI interface. MIIM PHY registers can be accessed through the MDC/MDIO interface.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • Integrated 5-port 10/100 Layer-2 switch with Gigabit uplink
      • New generation switch with four MACs, one GMAC (for uplink) and four PHYs (two 10/100Base-T/TX & two 100Base-FX) that are fully compliant with the IEEE 802.3u standard
      • 10/100Base-T/TX & 100Base-FX switch system which combines a switch engine, frame buffer management, address lookup table, queue management, MIB counters, MAC, and PHY transceivers
      • Rapid spanning tree support (RSTP) for topology management
      • Microchip LinkMD® cable diagnostic capabilities for determining cable opens, shorts, and length
    • Advanced Switch Capabilities
      • IEEE 802.1q VLAN support for up to 128 active VLAN groups (full range 4096 of VLAN IDs)
      • Support 802.1x port-based security and MAC-based authentication via access control lists (ACL)
    • QoS/CoS Packet Prioritization Support
      • 802.1p, DiffServ-based and Re-mapping of 802.1p priority field, per-port basis on four priority levels
      • 4 priority queues with dynamic mapping for IEEE 802.1P, IPV4 ToS (DiffServ), IPV6 Traffic Class, etc
      • Programmable rate limiting at the ingress and egress ports on a per port basis
    • Comprehensive Configuration Register Access
      • High-speed SPI (4-wire, up to 50MHz) interface to access all internal registers
      • MII management (MIIM, MDC/MDIO 2 wire) interface to access all PHY registers per IEEE 802.3 specification
      • Control registers configurable on-the-fly
    • Switch Monitoring Features
      • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII/RMII
      • MIB counters for fully-compliant statistics gathering (36 MIB counters per port)
    • Low Power Dissipation
      • Full-chip software power-down
      • Energy detect power-down (EDPD)
      • Support IEEE P802.3az Energy Efficient Ethernet (EEE)
      • Wake on LAN (WoL) support
Parametrics
Name
Value
Description
5-Port 10/100 Ethernet Switch with RGMII/GMII and Fiber Support
Ethernet Bandwidth
10/100Mbps
MAC
5
PHY
4
TX/RX RAM Buffer(Bytes)
n/a
Interrupt Pin
Yes
LEDs
8
Op. Voltage (V)
3.3
Interface
MII/RMII/RGMII/GMII
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
# of Ports
5
Managed
Yes
Copper Support
10/100 (2)
Fiber Support
100FX (2)
MII
Yes
RMII
Yes
GMII
Yes
RGMII
Yes
Supply Voltage (V)
3.3
Vdd I/O (V)
1.8/2.5/3.3
LinkMD Cable Diag
Yes
On-Chip Termination
Yes
ESD Rating (KV)
n/a
Smart Power Adjust
Yes
Largest Pkt-Size Bytes
2000
IPV6
Yes
# of VLAN
128
Flow Ctrl
Yes
Rate Limiting
Yes
Rapid Spanning Tree
Yes
Static MAC Addr
Yes

Documents

Jump to:

Supporting Collateral

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
KSZ8765CLX EVAL BOARD
KSZ8765CLX EVAL BOARD ( KSZ8765CLX-EVAL )
(Not Recommended for new design)

The KSZ8795 family is Micrel Operations new generation integrated 5-port switch with Gigabit up-link. The KSZ8765CLX is one of KSZ8795 family. KSZ8765CLX contains four MAC/PHYs with two fiber ports, two copper ports and one GMAC5 interface that is configurable GMII/RGMII/MII/RMII interfaces. The device had been designed with cost sensitive systems in mind but still offers a multitude of new...

Learn More
Software Libraries
KSZ8795/KSZ8794 Linux driver for revision 3.14 tared

KSZ8795/KSZ8794 Linux driver for revision 3.14 tared

Learn More
KSZ8795/KSZ8794 Linux driver for revision 3.18 tared

KSZ8795/KSZ8794 Linux driver for revision 3.18 tared

Learn More
KSZ8795/KSZ8794 Linux driver for revision 3.3 tared

KSZ8795/KSZ8794 Linux driver for revision 3.3 tared

Learn More

Similar Devices

Product
Ethernet Bandwidth
Interface
Price 5K
10/100Mbps
Host Bus
$7.53
10/100Mbps
MII/RMII
$3.76
10/100Mbps
MII/RMII/RGMII
$5.26
10/100Mbps
MII/RMII/RGMII
$8.26
10/100Mbps
MII/RMII/RGMII/SGMII
$6.62
10/100Mbps
MII/RMII/RGMII/GMII
$6.44
10/100Mbps
MII/RMII/RGMII
$3.25
10/100Mbps
MII/RMII/RGMII
$3.09
10/100Mbps
MII/RMII/RGMII/GMII
$3.20
10/100Mbps
Host Bus/PCI
$7.73
10/100Mbps
Host Bus
$6.71
10/100Mbps
Host Bus
$10.82
10/100Mbps
MII/RMII
$2.65
10/100Mbps
MII(2)/RMII(2)
$3.61
10/100Mbps
MII/RMII/MII(2)
$2.98
10/100Mbps
MII/RMII
$5.05
10/100Mbps
MII/RMII
$3.09
10/100Mbps
MII/RMII
$3.92
10/100Mbps
MII/RMII
$4.28
10/100Mbps
MII
$17.16
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$10.37
10/100/1000Mbps
MII/RMII/RGMII
$5.64
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$8.67
10/100/1000Mbps
MII/RMII/RGMII
$4.96
10/100/1000Mbps
MII/RMII/RGMII/GMII
$6.32
10/100/1000Mbps
MII/RMII/RGMII/SGMII
$6.39
10/100Mbps
MII/RMII/Turbo MII
$3.97
10/100Mbps
MII(2)/RMII(2)/Turbo MII(2)
$4.82
10/100Mbps
Host Bus
$7.36
10/100Mbps
Host Bus
$8.40
10/100Mbps
MII
$6.50
10/100Mbps
Host Bus/SPI/SQI
$6.75
10/100Mbps
MII/RMII/Turbo MII
$3.64
10/100Mbps
RMII
$3.41
10/100Mbps
MII/RMII/Turbo MII
$4.20
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$23.04
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$33.35
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$24.48
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$28.15
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$35.20
10/100/1000/2500Mbps
SGMII 1000Base-T (5)
$27.84
10/100/1000Mbps
SGMII 1000Base-T (8)
$28.90
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$33.23
10/100/1000Mbps
QSGMII 1000Base-T (12)
$38.22
10/100/1000Mbps
SGMII, QSGMII 1000Base-T (12)
$41.54
10/100/1000/2500Mbps
SGMII 1000Base-T (8)
$28.35
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (12)
$68.56
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$36.08
10/100/1000/2500Mbps
SGMII 1000Base-T (2)
$46.39
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$59.28
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$69.07
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$84.54
10/100/1000/2500Mbps 10Gbps
SGMII 1000Base-T XFI
$31.44
10/100/1000/2500Mbps
SGMII, QSGMII
$66.40
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$71.56
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$81.87
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI, RXAUI
$87.02
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$115.98
10/100/1000/2500Mbps 10Gbps
SGMII, QSGMII XFI, XAUI
$154.64
10/100/1000/2500Mbps
SGMII 1000Base-T (4)
$9.79
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$12.37
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$15.46
10/100/1000/2500Mbps
SGMII, QSGMII 1000Base-T (4)
$18.56

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
KSZ8765CLXCC
0.355800
1.462500
80
LQFP
10x10x1.4mm
Matte Tin
e3
KSZ8765CLXIC
0.355800
1.462500
80
LQFP
10x10x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
