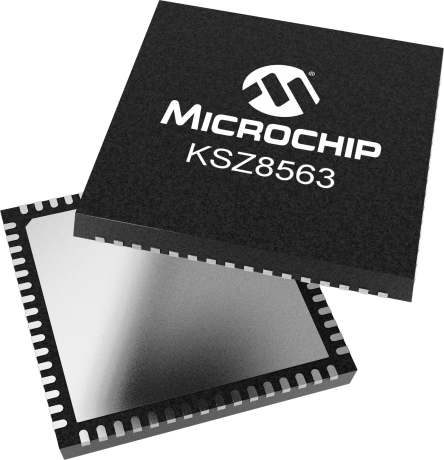

KSZ8563

3-Port 10/100 Ethernet Switch with 1588v2 PTP

Status: In Production

Features:

  • IEEE 1588 v2 PTP
  • Multiple spanning tree protocol (MSTP) support
  • IEEE 802.1Q VLAN support for 128 active VLAN groups and the full range of 4096 VLAN IDs
  • VLAN ID on per port or VLAN basis
  • Quiet-WIRE® filtering option for reduced emissions
  • LinkMD®+ receive signal quality indicator
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The KSZ8563 is a highly-integrated, IEEE 802.3 compliant networking device that incorporates a layer-2+ managed Ethernet switch, two 10BASE-T/100BASE-TX physical layer transceivers (PHYs) and associated MAC units, and one MAC port with a configurable RGMII/MII/RMII interface for direct connection to a host processor/ controller, another Ethernet switch, or an Ethernet PHY transceiver.  KSZ8563 also implements IEEE 1588v2 Precision Timing Protocol one-step operation.

Full register access is available by SPI or I2C interfaces, and by optional in-band management via any of the data ports. PHY register access is provided by a MIIM interface.
Security features include support for IEEE 802.1X port-based authentication and Access Control List (ACL) filtering.
An assortment of power-management features including Energy-Efficient Ethernet (EEE) have been designed in to satisfy energy efficient environments.

Looking for a Linux® Host Processor, try the SAMA5D3

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
  • EtherSync®
    • IEEE 1588 v2 PTP
    • One-step Operation
    • Transparent Clock (TC) with auto correction update
    • Master and slave Ordinary Clock (OC) support
    • End-to-end (E2E) or peer-to-peer (P2P)
    • PTP multicast and unicast message support
    • PTP message transport over IPv4/v6 and IEEE 802.3
    • IEEE 1588v2 PTP packet filtering
  • Switch Management Capabilities
    • 10/100Mbps Ethernet switch basic functions: frame buffer management, address look-up table, queue management, MIB counters
    • Non-blocking store-and-forward switch fabric assures fast packet delivery by utilizing 4096 entry forwarding table with 128kByte frame buffer
    • Jumbo packet support up to 9000 bytes
    • Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port
    • Rapid spanning tree protocol (RSTP) support for topology management and ring/linear recovery
    • Multiple spanning tree protocol (MSTP) support
  • Configurable External MAC Port
    • Reduced Gigabit Media Independent Interface (RGMII) v2.0
    • Reduced Media Independent Interface (RMII) v1.2 with 50MHz reference clock input/output option
    • Media Independent Interface (MII) in PHY/MAC mode
  • Advanced Switch Capabilities
    • IEEE 802.1Q VLAN support for 128 active VLAN groups and the full range of 4096 VLAN IDs
    • IEEE 802.1p/Q tag insertion/removal on per port basis
    • VLAN ID on per port or VLAN basis
    • IEEE 802.3x full-duplex flow control and half-duplex back pressure collision control
    • IEEE 802.1X (Port-Based Network Access Control)
    • IGMP v1/v2/v3 snooping for multicast packet filtering
    • IPv6 multicast listener discovery (MLD) snooping
    • IPv4/IPv6 QoS support, QoS/CoS packet prioritization
    • 802.1p QoS packet classification with 4 priority queues
    • Programmable rate limiting at ingress/egress ports
  • Two Robust Integrated PHY Ports
    • 100BASE-TX/10BASE-T IEEE 802.3
    • Quiet-WIRE® filtering option for reduced emissions
    • LinkMD®+ receive signal quality indicator
    • Fast Link-up option significantly reduces link-up time
    • Auto-negotiation and Auto-MDI/MDI-X support
    • Energy-Efficient Ethernet (EEE) support with low-power idle mode and clock stoppage
    • On-chip termination resistors and internal biasing for differential pairs to reduce power
    • LinkMD® cable diagnostic capabilities for determining cable opens, shorts, and length
Parametrics
Name
Value
Description
3-Port 10/100 Ethernet Switch with RGMII
Ethernet Bandwidth
10/100Mbps
MAC
3
PHY
2
TX/RX RAM Buffer(Bytes)
n/a
Interrupt Pin
Yes
LEDs
4
Op. Voltage (V)
3.3
Interface
MII/RMII/RGMII
I/O Pins
6
IEEE 1588
Yes
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
# of Ports
3
Managed
Yes
Copper Support
10/100 (2)
MII
Yes
RMII
Yes
RGMII
Yes
Supply Voltage (V)
3.3
Vdd I/O (V)
1.8/2.5/3.3
LinkMD Cable Diag
Yes
On-Chip Termination
Yes
ESD Rating (KV)
6
Smart Power Adjust
Yes
Largest Pkt-Size Bytes
9000
IPV6
Yes
# of VLAN
128
Flow Ctrl
Yes
Rate Limiting
Yes
Rapid Spanning Tree
Yes
Static MAC Addr
Yes
