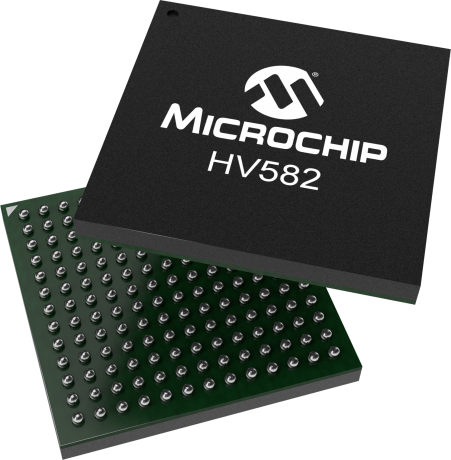

product primary image

HV582

96-Channel, Serial to Parallel Converter w/ Push-Pull Outputs

Status: In Production

Features:

  • 96 High Voltage Channels
  • 80V Operating Output Voltage
  • 75 mA Sink/Source Peak Current
  • 6 Interleaved 16-bit Shift Registers
  • Clockwise and Counter-Clockwise Data Shifting via DIR Pin
  • 30 MHz Data Rate
  • Operating Junction Temperature: -40°C to 125°C
  • Package 169- Ball 10x10x1.1mm TFBGA
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The HV582 is a unipolar, 96-channel low-voltage serial to high-voltage parallel converter with push-pull outputs. This device has been designed for applications requiring multiple high-voltage outputs with current sinking and sourcing capabilities, such as plasma displays and Inkjet printers. The device consists of six parallel 16-bit shift registers, a 96-bit latch and 96 high-voltage outputs. The shift registers operate at 30 MHz, allowing 180 MHz data rates due to the parallel arrangement. The HV582 is offered in a 169-ball 10 x 10 x 1.1 mm TFBGA package.

Additional Features



    • 96 High Voltage Channels
    • 80V Operating Output Voltage
    • 75 mA Sink/Source Peak Current
    • 6 Interleaved 16-bit Shift Registers
    • Clockwise and Counter-Clockwise Data Shifting via DIR Pin
    • 30 MHz Data Rate
    • Operating Junction Temperature: -40°C to 125°C
    • Package 169- Ball 10x10x1.1mm TFBGA
Parametrics
Name
Value
Type
Source-Sink
Output Channels
96
Vout (V) operating – Transient
85
Vout (V) Operating - Sustained
80
Iout (mA) per Channel
± 75
Output Structure
Half-Bridge
Input Structure
Serial
Minimum Data Clock (MHz)
30
General Description
96-CHANNEL, W/HI-VOLT CMOS OUTPUTS, 80V
Package
10x10x1.1 mm TFBGA

Documents

Jump to:

Data Sheet

12/30/2015
412KB

Code Examples

01/19/2016
57KB

Software Library

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
  • Application Examples
Demo & Evaluation Boards
HV582  96-Channel High-Voltage Driver IC Evaluation Board
HV582 96-Channel High-Voltage Driver IC Evaluation Board ( ADM00697 )

The HV582 96-Channel High-Voltage Driver IC Evaluation Board facilitates the quick implementation for display and printer driver applications with its flexible input/output connection interface. The Evaluation Board is designed around the HV582, a unipolar, 96-channel low-voltage serial to high-voltage parallel converter with push-pull outputs. This device has been designed for applications...

Learn More
Add To Cart
PIC32 STARTER KIT
PIC32 STARTER KIT ( DM320001 )

The PIC32 Starter Kit provides the easiest and lowest cost method to experience the PIC32 microcontroller for the first time. From the over 35 source code examples to the getting started project, users quickly learn Microchip's 32-bit family of microcontrollers and development tools. The kit includes everything needed to write, program, debug, and execute code on a high performance PIC32...

Learn More
Add To Cart
Software Libraries
Analog Simulation - HV582

Learn More

Similar Devices

Product
Price 5K
$14.46
$10.08
$2.51
$3.51
$2.25
$3.81
$3.51
$3.33
$3.33
$4.00
$5.51
$4.45
$4.00
$5.51
$4.45
$6.71
$8.76
$6.07
$6.67
$1.60
$11.95
$8.45
$2.06
$1.49
$7.11
$8.52
$13.48
$3.00
$3.00
$3.00
$1.09
$0.84
$1.67
$1.39
$1.17
$1.49
$1.50
$1.07
$3.39
$3.11
$3.24
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV582GA-G
0.206600
1.005952
169
TFBGA
10x10x1.1mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
