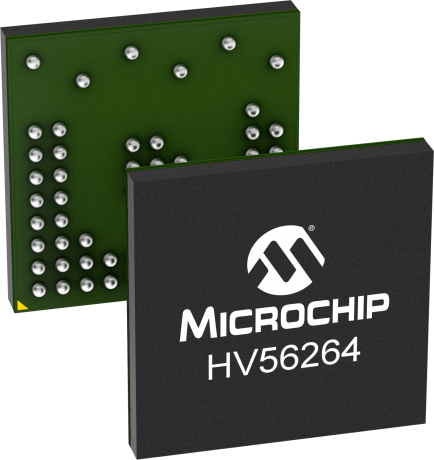

product primary image

Automotive Grade Quad 250V High Voltage Amplifier Array

HV56264

QUAD, High Voltage, Amplifier Array

Status: In Production

Features:

  • 4 Independent High Voltage Amplifiers (225Vout Swing)
  • 11V/µs Typ Slew Rate (Cload = 15pF)
  • Adjustable Gain by Off-Chip High Voltage Resistors
  • HV56264 is AEC-Q100 Grade 1
  • Operating Temperature (Tj) Range -40°C to +125°C
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The HV56264 IC is an AECQ100 rated, Quad High Voltage Amplifier Array integrated circuit. The device operates on a 225V high voltage supply and a 5.0V low voltage supply. Amplifiers input voltage range from 0V to 3.3V and output swing ranges from 1.0V to VPP – 10V with a 3 mA sink/source current capability. The HV56264 is designed for maximum performance with minimal high voltage current. The high voltage current for each channel is less than 75 μA.

Additional Features
  • 4 Independent High Voltage Amplifiers (225Vout Swing)
  • 11V/µs Typ Slew Rate (Cload = 15pF)
  • Adjustable Gain by Off-Chip High Voltage Resistors
  • HV56264 is AEC-Q100 Grade 1
  • Operating Temperature (Tj) Range -40°C to +125°C
  • Two Package Options
    • 24-Ld TSSOP (6.4mm x 8.0mm, HV56264T-E/QEX-VAO)
    • 60-Ld TFBGA (6.0mm x 6.0mm, HV56264T-E/AKA-VAO)
Parametrics
Name
Value
Slew Rate (V/µs)
11
Closed Loop Gain (V/V)
Resistor Determined
Feedback Resistance (M Ω)
N/A
HVOUT Source max (µA)
3000
HVOUT Sink max (µA)
3000
HVOUT Capacitive Load max (pF)
15
Output Current Limit
Amp only
Package
TSSOP-24, TFBGA-60

Documents

Jump to:

Data Sheets


738KB

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
HV56264 Quad High Voltage Amp Array EVB
HV56264 Quad High Voltage Amp Array EVB ( ADM01007 )

The ADM01007 is a development tools that allows customers to evaluation the function and capabilities of the HV56264. The HV56264 is an automotive version of the industrial amplifier array, the HV264.

Learn More
Add To Cart

Similar Devices

Product
Slew Rate
Closed Loop Gain
Feedback Resistance
Price 5K
3
50
12
$82.10
2
72
12
$128.59
2
72
12
$152.66
9
66.7
5.3
$4.04
0.02
82
4.9
$10.77
0.2
75
1.9
$2.26
0.2
75
1.9
$1.08
11
Resistor Determined
N/A
$4.20

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV56264T-E/AKA-VAO
0.000000
0.258667
60
TFBGA
6x6x1.20
Sn96.5/Ag3.5
e2
HV56264T-E/QEX-VAO
0.073500
0.212400
24
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
