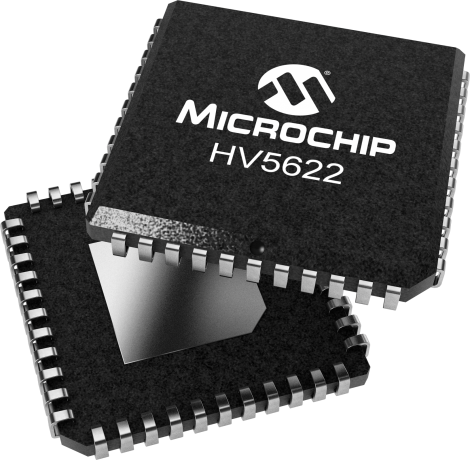

product primary image

HV5622

32-Channel, Serial to Parallel Converter w/ Open Drain Outputs, 220V

Status: In Production

Features:

  • Processed with HVCMOS® technology
  • Sink current minimum 100mA
  • Shift register speed 8.0MHz
  • Polarity and Blanking inputs
  • CMOS compatible inputs
  • Forward and reverse shifting options
  • Diode to VPP allows efficient power recovery
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The HV5622 is a low-voltage serial to high-voltage parallel converter with open drain outputs. This device has been designed for use as a driver for AC-electroluminescent displays. It can also be used in any application requiring multiple output high voltage current sinking capabilities such as driving inkjet and electrostatic print heads, plasma panels, vacuum fluorescent, or large matrix LCD displays. This device consists of a 32-bit shift register, 32 latches, and control logic to perform the polarity select and blanking of the outputs. Data is shifted through the shift register on the high to low transition of the clock. The HV5622 shifts in the clockwise direction when viewed from the top of the package. A data output buffer is provided for cascading devices. This output reflects the current status of the last bit of the shift register. Operation of the shift register is not affected by the LE (latch enable), BL (blanking), or the POL (polarity) inputs. Transfer of data from the shift register to the latch occurs when the LE (latch enable) input is high. The data in the latch is stored when LE is low.

Additional Features
  • Processed with HVCMOS® technology
  • Sink current minimum 100mA
  • Shift register speed 8.0MHz
  • Polarity and Blanking inputs
  • CMOS compatible inputs
  • Forward and reverse shifting options
  • Diode to VPP allows efficient power recovery
Parametrics
Name
Value
Type
Sink
Output Channels
32
Vout (V) operating – Transient
230
Vout (V) Operating - Sustained
220
Iout (mA) per Channel
100
Output Structure
Open Drain
Input Structure
Serial
Minimum Data Clock (MHz)
8
General Description
32-CHANNEL, W/OPEN DRAIN OUTPUTS, 220V
Package
44/PQFP 44/WQFN 44/PLCC

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$14.46
$10.08
$2.51
$3.51
$2.25
$3.81
$3.51
$3.33
$3.33
$4.00
$5.51
$4.45
$4.00
$5.51
$4.45
$6.71
$8.76
$6.07
$6.67
$1.60
$11.95
$8.45
$2.06
$1.49
$7.11
$8.52
$13.48
$3.00
$3.00
$3.00
$1.09
$0.84
$1.67
$1.39
$1.17
$1.49
$1.50
$1.07
$3.39
$3.11
$3.24
$3.30

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV5622PJ-G
2.375500
3.259259
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
HV5622PG-G
0.420210
2.083333
44
PQFP
10x10x2.35mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
