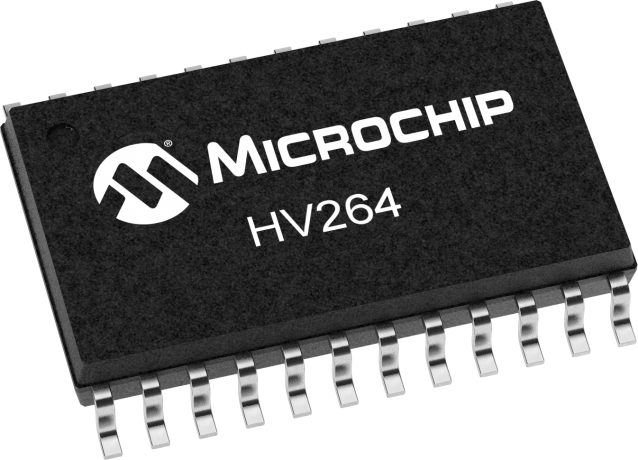

product primary image

HV264

QUAD, High Voltage, Amplifier Array

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

HV264 is a quad high voltage amplifier array integrated circuit. It operates on a 200V high voltage supply and a 5.0V low voltage supply. Each channel has its own input and output. When both VOUT and FB pins are connected together and RGND is set at 0V, a non-inverting amplifier is formed with closed loop gain of 66.7V/V. High value internal feedback resistors are used to minimize the power dissipation. The input voltage VIN is designed for a range of 0.05V to 2.85V. The output can swing from 1.0V to VPP -10V. A 2.85V input will cause the output to swing to 190V. The HV264 is designed for maximum performance with minimal high voltage current. The high voltage current for each channel is less than 75µA. The typical output slew rate performance is 9.0V/µs.

Additional Features
  • Four independent high voltage amplifiers
  • 215V output swing
  • 9.0V/µs typical output slew rate
  • Fixed gain of 66.7V/V
  • High value internal feedback resistors
  • Very low operating current
Parametrics
Name
Value
Slew Rate (V/µs)
9
Closed Loop Gain (V/V)
66.7
Feedback Resistance (M Ω)
5.3
HVOUT Source max (µA)
3000
HVOUT Sink max (µA)
3000
HVOUT Capacitive Load max (pF)
15
Output Current Limit
Amp only
Package
TSSOP-24

Documents

Jump to:

Software Library

User Guides

06/25/2014
468KB

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
  • Application Examples
Demo & Evaluation Boards
HV264DB1 Demo Board
HV264DB1 Demo Board ( ADM00961 )

Learn More
Add To Cart
Software Libraries
Analog Simulation - HV264

HV264 is a quad high voltage amplifier array integrated circuit. It operates on a 200V high voltage supply and a 5.0V low voltage supply. Each channel has its own input and output. When both VOUT and...

Learn More

Similar Devices

Product
Slew Rate
Closed Loop Gain
Feedback Resistance
Price 5K
3
50
12
$78.19
2
72
12
$122.47
2
72
12
$145.39
9
66.7
5.3
$5.19

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HV264TS-G
0.073500
0.212400
24
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
