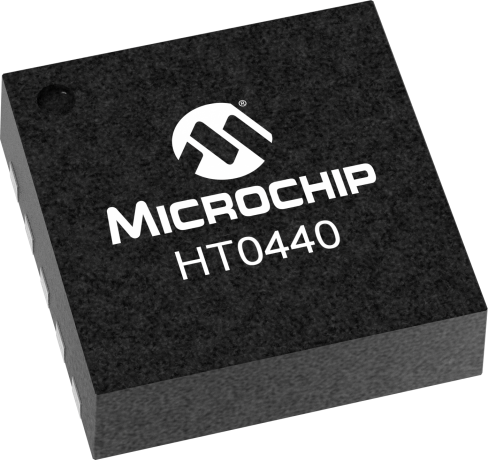

product primary image

HT0440

Dual, High Voltage, Isolated MOSFET Driver

Status: In Production

Features:

  • ±400V input to output isolation
  • ±700V isolation between outputs
  • No external voltage supply required
  • Dual isolated output drivers
  • Option of internal or external clock
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

HT0440 is a dual, high voltage, isolated MOSFET driver utilizing proprietary HVCMOS® technology. It is designed to drive discrete MOSFETs configured as bidirectional or unidirectional switches. It can drive N-channel MOSFETs as high-side switches up to 400V. The HT0440 generates two independent DC isolated voltages to the outputs, VOUTA and VOUTB when logic inputs A and B are at logic high. The internal clock of the HT0440 can be disabled by applying an external clock signal to the CLK pin. This allows the power dissipation and AC characteristics to be tailored to meet specific needs. The CLK pin should be connected to ground when not in use. The HT0440 does not require any external power supplies, the internal supply voltage is supplied by either of the two logic inputs, A or B, when they are at logic high. For detailed circuit application information, please refer to application note AN-D26.

Additional Features
  • ±400V input to output isolation
  • ±700V isolation between outputs
  • No external voltage supply required
  • Dual isolated output drivers
  • Option of internal or external clock
Parametrics
Name
Value
# of Channels
2
InputVoltageLow
3.15
Input Voltage High (V)
5.5
Output Voltage Low (V)
6
Output Voltage High (V)
10
Input to Output Isolation (V)
±400
Package
DFN-10, SOIC-8

Documents

Jump to:

Software Library

Development Environment

  • Software Libraries
Software Libraries
Analog Simulation - HT0440

The Supertex HT0440 is a dual, high voltage, isolated MOSFET driver utilizing Supertex’s proprietary HVCMOS® technology. It is designed to drive discrete MOSFETs configured as bidirectional...

Learn More

Similar Devices

Product
Price 5K
$1.33
$0.80

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HT0440K6-G
0.024500
0.152667
10
VDFN
3x4x1.0mm
NiPdAu
e4
HT0440LG-G
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
