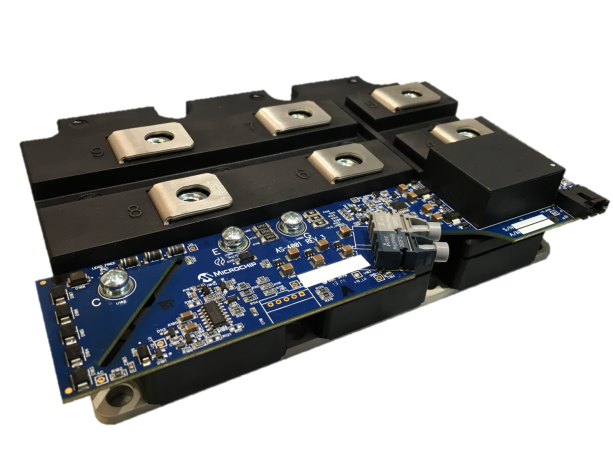

IGBT High Power Module Gate Driver Board

HPFM

AgileSwitch HPM Fiber Master - 3300V

Status: In Production

Features:

  • 2-level turn-off time and voltage level
  • Desaturation time and voltage level
  • Gate drive voltage +15V/-10V
  • Peak gate current +/-30A
  • Suitable for IGBTs up to 3300V
  • 1 X 7W output power
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

Our core competence is designing Gate Drivers to be faster, more efficient and more reliable than the competition. All drivers are RoHS & UL compliant and use automotive grade components. These High Power Module gate drivers are Suitable for IGBTs up to 3300V. They operate up to 15 kHz switching and have Master-Slave Capability, Single Fault Reported via Fiber I/O and 1 X 7W Output Power.

For more information please contact us at: info@AgileSwitch.com

Additional Features
  • 2-level turn-off time and voltage level
  • Soft Shut Down (SSD) time and voltage level
  • Desaturation time and voltage level
  • Master-Slave capability for parallel operation
  • Gate drive voltage +15V/-10V
  • Peak gate current +/-30A
  • Suitable for IGBTs up to 3300V
  • Power supply under-voltage lockout (UVLO)
  • 1 X 7W output power
Parametrics
Name
Value
Usable Device Voltage(V)
1200-3300
Output Current(A)
30
Short-Circuit Protection
Yes
Short-Circuit Response Time
<6.1μs
Integrated DC-DC Converter
Yes

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HPFM-00117
0.639000
0.639000
N/A
N/A
19.7x4.7x1.6 cm
N/A
N/A
HPFM-0017
0.094000
0.639000
N/A
N/A
19.7x4.7x1.6 cm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
