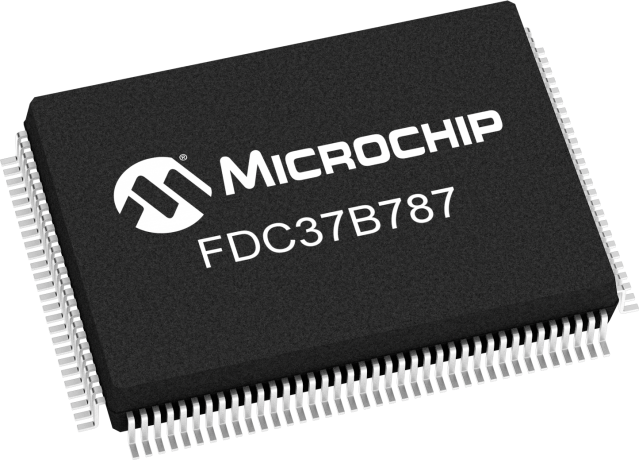

FDC37B787

Super I/O Controller

Status: In Production

Features:

  • ISA Interface
  • 128 QFP Package
  • 5V Operating Voltage
  • 20 GPIO Pins
  • 2 16C550-compatible UARTs
  • 1 Multi-Mode Parallel Port
  • On-chip 12 mA AT bus drivers
  • 2 Floppy Direct Support
  • Soft power management
  • SMI Support
  • ISA Plug-and-Play Standard (Version 1.0a) Support
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

FDC37B78x has advanced Consumer IR and IrDA v1.0 support to incorporate a keyboard interface, real-time clock, SMSC's true CMOS 765B floppy disk controller with 100% IBM PC/XTTM and PC/ATTM architecture compatibilities as well as data overflow and underflow protection, advanced digital data separator, and a Multi-Mode parallel port with ChiProtectTM.

The product incorporates sophisticated power control circuitry (PCC), which supports multiple low power down modes. It also features SMI support and Intelligent Power Management including PME and SCI/ACPI support. FDC37B78x has the recommended functionality to support Windows '95, PC97 and PC98.

Family parts
FDC37B787-NS

Additional Features
    • ISA Interface
    • 128 QFP Package
    • 5V Operating Voltage
    • 20 GPIO Pins
    • 2 16C550-compatible UARTs
    • 1 Multi-Mode Parallel Port
    • On-chip 12 mA AT bus drivers
    • 2 Floppy Direct Support
    • Soft power management
    • SMI Support
    • ISA Plug-and-Play Standard (Version 1.0a) Support
Parametrics
Name
Value
Parallel Port
Yes
GPIO Pins
20
Operating Voltage
5V
Op Temp Max
70
Interface
ISA

Documents

Jump to:

Silicon Product

06/26/2014
0B
