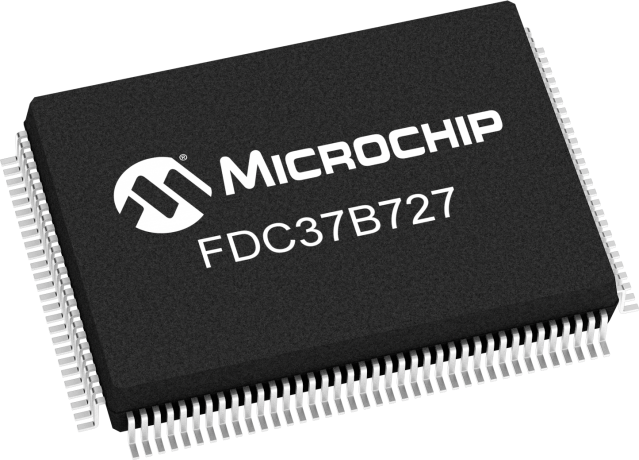

product primary image

FDC37B727

Super I/O Controller

Status: In Production

Features:

  • 8042 Keyboard Controller
  • ISA Interface
  • 128 QFN Packaging
  • 5V Operating Voltage
  • 20 GPIO Pins
  • CMOS 765B Floppy Disk Controller
  • 16 Byte Data FIFO
  • 2 16C550 and NS16C550A Compatible UARTs
  • 1 Multi-Mode Parallel Port
  • On-chip 12 mA AT bus drivers
  • SMI Support
  • ACPI Compliance
  • ISA Plug-and-Play Standard (Version 1.0a) Support
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

FDC37B72x provides an integrated keyboard interface, SMSC's true CMOS 765B floppy disk controller, one Multi-Mode parallel port (includes: ChiProtectTM circuitry plus EPP and ECP support), soft power management, SMI support, and Intelligent Power Management (includes: PME and SCI/ACPI support).

CMOS 765B core provides 100% compatibility with IBM PC/XTTM and PC/ATTM architectures in addition to providing data overflow and underflow protection. Both on-chip UARTs are compatible with the NS16C550A. The parallel port is compatible with IBM PC/ATTM architecture, as well as EPP and ECP. This product incorporates sophisticated power control circuitry (PCC) which provides support for multiple low power down modes. It includes keyboard, mouse, modem ring, power button support and other wake-up events.

The device provides for the recommended functionality to support Windows '95/’98 and PC98/PC99. Through internal configuration registers, each of the FDC37B72x's logical device's I/O address, DMA channel and IRQ channel may be programmed.

Family parts
FDC37B727-NS

Additional Features
    • 8042 Keyboard Controller
    • ISA Interface
    • 128 QFN Packaging
    • 5V Operating Voltage
    • 20 GPIO Pins
    • CMOS 765B Floppy Disk Controller
    • 16 Byte Data FIFO
    • 2 16C550 and NS16C550A Compatible UARTs
    • 1 Multi-Mode Parallel Port
    • On-chip 12 mA AT bus drivers
    • SMI Support
    • ACPI Compliance
    • ISA Plug-and-Play Standard (Version 1.0a) Support
Parametrics
Name
Value
Parallel Port
Yes
GPIO Pins
20
Operating Voltage
5V
Op Temp Max
70
Interface
ISA

Documents

Jump to:

Silicon Product

06/26/2014
0B

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K

$0.62
$0.67
$1.35
$0.89
$2.79


$7.28
$9.62
$5.35
$5.78
$8.65
$5.56
$2.30
$5.07
$1.35
$1.80
$2.44
$4.99

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
FDC37B727-NS
1.806400
6.803030
128
QFP
14x20x2.7
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
