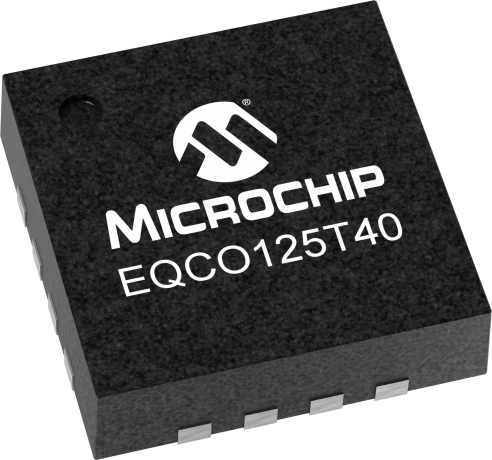

The EQCO125T40 is a CoaXPress 2.0 Cable Driver and reclocker (integrated CDR) designed to simultaneously transmit signals on a single cable or PCB trace pair. In one direction an 8b/10b coded downlink signal is transmitted between 1.25 Gbps and 12.5 Gbps. In the opposite direction a lower speed 8b/10b coded uplink signal is transmitted at 20.833 Mbps or 41.666 Mbps. The EQCO125T40 has an integrated high speed reclocker and cable driver. The uplink channel also has an integrated receiver and reclocker. The downlink signal is transmitted with 600 mV transmit amplitude. This device is designed to be used on the transmit side only.
Development tools data is currently unavailable.
For pricing and availability, contact Microchip Local Sales.
