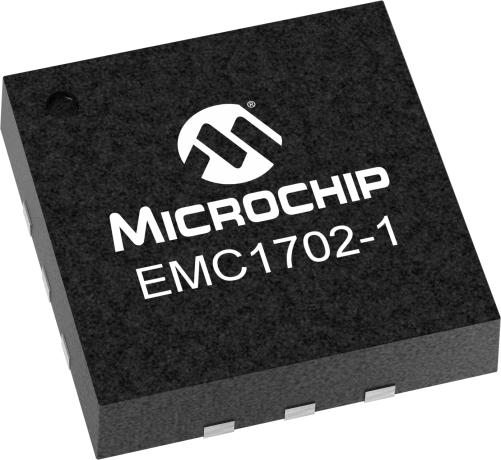

product primary image

EMC1702-1

Status: In Production

Features:

  • Bi-directional current measurement
  • Measures bus voltage
  • 1% current measurement accuracy
  • Integrated over 82ms to 2.6sec with 11-bit resolution
  • 3V to 24V voltage bus voltage range
  • Calculates proportional power
  • Software controls to program time duration and magnitude threshold
  • Bus or separately powered for low voltage operation
  • Wide temperature operating range: -40°C to +85°C
  • 1°C accuracy (20°C < TDIODE < 110°C) with 0.125°C resolution
  • Ideality factor setting
  • Support for 45nm and 65nm CPU diodes requiring the BJT/transistor model with beta compensation
  • Determines external diode type and optimal settings
  • Resistance Error Correction
  • ±1°C accuracy (-5°C < TA < 85°C)
  • ALERT# and THERM# outputs for temperature, voltage, and out-of-current limit reporting
  • Pin-selectable SMBus Address
  • Block Read and Write
  • Available in a 12-pin 4mm x 4mm QFN RoHS Compliant Package
  • Notebook and Desktop Computers
  • Industrial
  • Power Management Systems
  • Embedded Applications
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The EMC1702 is a combination high-side current sensing device with precision temperature measurement. It measures the voltage developed across an external sense resistor to represent the high-side current of a battery or voltage regulator. It also measures the bus voltage and uses these measured values to present a proportional power calculation. The EMC1702 contains additional bidirectional peak detection circuitry to flag instantaneous current spikes with programmable time duration and magnitude threshold. Finally, the EMC1702 includes an external diode channel for temperature measurement as well as an internal diode for ambient temperature measurements.

The temperature measurement includes advanced features such as Resistance Error Correction (REC), Beta Compensation (to support CPU diodes requiring the BJT/transistor model including 45nm and 65nm processors), and automatic diode type detection.

Both current sensing and temperature monitoring include two tiers of protection: one that can be masked and causes the ALERT# pin to be asserted, and the other that cannot be masked and causes the THERM# pin to be asserted.

Additional Features

    Features

    • High-side current sensor
      • Bi-directional current measurement
      • Measures bus voltage
      • 1% current measurement accuracy
      • Integrated over 82ms to 2.6sec with 11-bit resolution
      • 3V to 24V voltage bus voltage range
    • Calculates proportional power
    • Independent hardware set instantaneous current peak detector
      • Software controls to program time duration and magnitude threshold
    • Power supply options
      • Bus or separately powered for low voltage operation
    • Wide temperature operating range: -40°C to +85°C
    • One external temperature monitor
      • 1°C accuracy (20°C < TDIODE < 110°C) with 0.125°C resolution
      • Ideality factor setting
      • Support for 45nm and 65nm CPU diodes requiring the BJT/transistor model with beta compensation
      • Determines external diode type and optimal settings
      • Resistance Error Correction
    • Internal temperature monitor
      • ±1°C accuracy (-5°C < TA < 85°C)
    • ALERT# and THERM# outputs for temperature, voltage, and out-of-current limit reporting
    • I2C/SMBus 2.0 interface
      • Pin-selectable SMBus Address
      • Block Read and Write
    • Available in a 12-pin 4mm x 4mm QFN RoHS Compliant Package

    Applications

    • Notebook and Desktop Computers
    • Industrial
    • Power Management Systems
    • Embedded Applications
Parametrics
Name
Value
# Current Sensors
1
Description
Current/DC Power Sensor with Temperature Monitoring
Full Scale Range (mV)
10, 20, 40, 80
Current Measuerment Max Accr (%)
±1
Effective Sampling Interval min to max (msec)
2.5 to 2600
Bus Voltage Range (V)
+3 to +24
# Temperature Monitors (ambient, remote)
1, 1
Temperature Accuracy Typ / Max (°C)
±0.25 / ±1.0
Alert/Therm
2
Peak Detection
Hardware
Interface
SMBus/I2C
Address Select
yes

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Description
Full Scale Range (mV)
Bus Voltage Range (V)
Price 5K
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.76
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.65
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$0.85
Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24

Current/DC Power Sensor with Temperature Monitoring
10, 20, 40, 80
+3 to +24
$1.03
Current/DC Power Sensor
10, 20, 40, 80
0 to +40
$0.56
Dual Current/DC Power Sensor
10, 20, 40, 80
0 to +40
$0.79
Current/DC Power Sensor
100
0 to +32
$0.67
Dual DC Power Sensor
100
0 to +32
$0.79
Triple DC Power Monitor with Accumulation
100
0 to +32
$0.96
Quad DC Power sensor wtih Accumulator
100
0 to +32
$1.12

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
EMC1702-1-KP-TR
0.025400
0.139394
12
QFN
4x4x0.9mm
Matte Tin
e3
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
