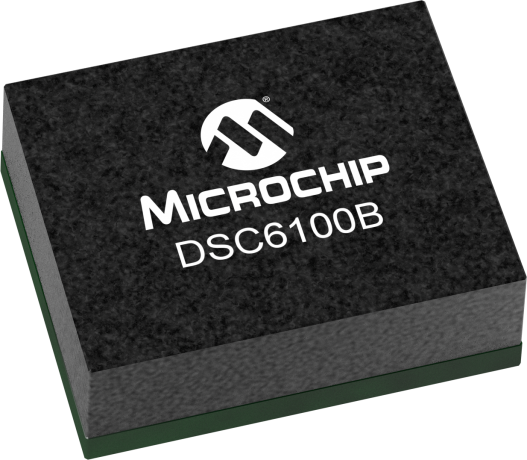

DSC6100B

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The DSC61XXB family of MEMS oscillators combine the industry leading low power consumption and ultra-small packages with exceptional frequency stability and jitter performance over temperature. The single-output DSC61XXB MEMS oscillators are excellent choices for use as clock references in small, battery-powered devices such as wearable and Internet of Things (IoT) devices in which small size, low power consumption, and long-term reliability are paramount.

The low power/ low jitter DSC6100B family is available in ultra-small 1.6 mm x 1.2 mm, 2.0 mm x 1.6 mm  and 2.5 mm x 2.0 mm. packages. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal oscillators.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.

DSC61XXB provides improved jitter performance and wider temperature range over DSC6100 family and is the recommended ultra-low power MEMS oscillator for all new designs.

Additional Features
  • Wide Frequency Range:
    • 3.5 KHz to 100 MHz
  • Ultra–Low Power Consumption: 3 mA/1.5µA (Active/Standby)
  • Ultra-Small Footprints:
    • 1.6 mm x 1.2 mm
    • 2.0 mm x 1.6 mm
    • 2.5 mm x 2.0 mm
  • Frequency Select Input Supports 2 Predefined Frequencies
  • High Stability: ±20, ±25, ±50 ppm
  • Supply Range of 1.71V to 3.63V
  • Wide Temperature Range:
    • Automotive: –40°C to 125°C
    • Ext. Industrial : : –40°C to 105°C
    • Industrial: –40°C to 85°C
    • Ext. Commercial: –20° to 70°C
  • Excellent Shock & Vibration Immunity: Qualified to MIL-STD-883
  • High Reliability: 20x Better MTTF Than Quartz Oscillators
  • Lead Free & RoHS Compliant
  • Short Sample Lead Time: <2 weeks
Parametrics
Name
Value
Supply Voltage (V)
1.71 - 3.63
Output Type
LVCMOS
Output Frequency Min (MHz)
0.0035
Output Frequency Max (MHz)
100
# of Outputs
1
Output Logic
LVCMOS

Documents

Jump to:

Data Sheets

Brochures


Development tools data is currently unavailable.


Rohs data is currently unavailable.
