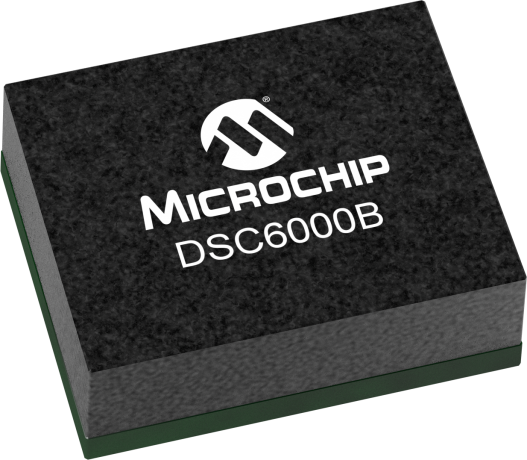

DSC6000B

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The DSC60XXB family of MEMS oscillators combine the industry leading low power consumption and ultra-small packages with exceptional frequency stability and jitter performance over temperature. The single-output DSC6000B MEMS oscillators are excellent choices for use as clock references in small, battery-powered devices such as wearable and Internet of Things (IoT) devices in which small size, low power consumption, and long-term reliability are paramount.

The Ultra-low power DSC60XXB family is  available in ultra-small 1.6 mm x 1.2 mm and 2.0 mm x 1.6 mm packages. Other package size include: 2.5 mm x 2.0 mm. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal oscillators.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.

DSC60XXB provides improved jitter performance and wider temperature range over DSC6000 family and is the recommended ultra-low power MEMS oscillator for all new designs.



Additional Features
  • Wide Frequency Range: 2 KHz to 80 MHz
  • Ultra–Low Power Consumption: 1.3 mA/1.5µA (Active/Standby)
  • Ultra-Small Footprints :
    • 1.6 mm x 1.2 mm
    • 2.0 mm x 1.6 mm
    • 2.5 mm x 2.0 mm
  • Frequency Select Input Supports 2 Predefined Frequencies
  • High Stability: ±20, ±25, ±50 ppm
  • Wide Temperature Range:
    • Automotive: –40°C to 125°C
    • Ext. Industrial: –40°C to 105°C
    • Industrial: –40°C to 85°C
    • Ext. Commercial: –20° to 70°C
  • Excellent Shock & Vibration Immunity: Qualified to MIL-STD-883
  • High Reliability: 20x Better MTTF Than Quartz Oscillators
  • Supply Range of 1.71V to 3.63V
  • Short Sample Lead Time: <2 weeks
  • Lead Free & RoHS Compliant
Parametrics
Name
Value
Supply Voltage (V)
1.71 - 3.63
Output Type
LVCMOS
Output Frequency Min (MHz)
0.002
Output Frequency Max (MHz)
80
# of Outputs
1
Period Jitter
10
Output Logic
LVCMOS

Documents

Jump to:

Data Sheets


531KB

Supporting Collateral

Brochures


858KB
