DSC2110

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

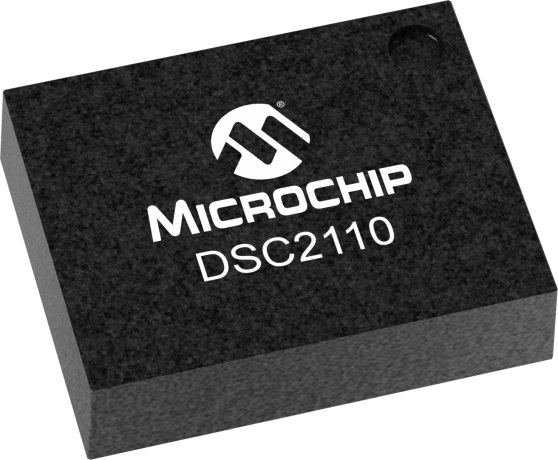

The DSC2110 series of programmable, high-performance CMOS oscillators utilize a proven silicon MEMS technology to provide excellent jitter and stability while incorporating high output frequency flexibility and drive strength control. DSC2110 allows the user to modify the frequency and output drive strength using I2C interface. User can also select from two pre-programmed default output frequencies using the control pin. .DSC2110 is packaged in 14-pin 3.2mm x 2.5mm QFN packages and available in temperature grades from Ext. Commercial to Automotive.

Additional Features
  • I2C interface for Programming Freq & Drive strength
  • Wide Freq. Range: CMOS Output: 2.3 to 170MHz
  • Low RMS Phase Jitter: <1 ps (typ.)
  • High Stability: ±10, ±25, ±50 ppm
  • Wide Temperature Range:
    • Automotive: -55°C to 125°C
    • Ext. Commercial: -20°C to 70°C
    • Ext. Industrial: -40°C to 105°C
    • Industrial: -40°C to 85°C
  • Miniature Footprint of 3.2mm x 2.5mm
  • Excellent Shock & Vibration Immunity Qualified to MIL-STD-883
  • Qualified to MIL-STD-883
  • High Reliability 20x better MTF than quartz oscillators
  • 20x better MTF than quartz oscillators
  • Lead Free and RoHS Compliant
  • Supply Range of 2.25V to 3.6V
Parametrics
Name
Value
Sub Group 1
I2C configurable Oscillator
Input Type
MEMS
Supply Voltage (V)
2.25 to 3.63
Output Type
LVCMOS
Output Frequency Min (MHz)
2
Output Frequency Max (MHz)
170
# of Outputs
1
Phase Jitter
1.7
Output Logic
LVCMOS

Documents

Jump to:

Data Sheet

Programming Specification

10/29/2015
522KB

User Guides


Development tools data is currently unavailable.


Rohs data is currently unavailable.
