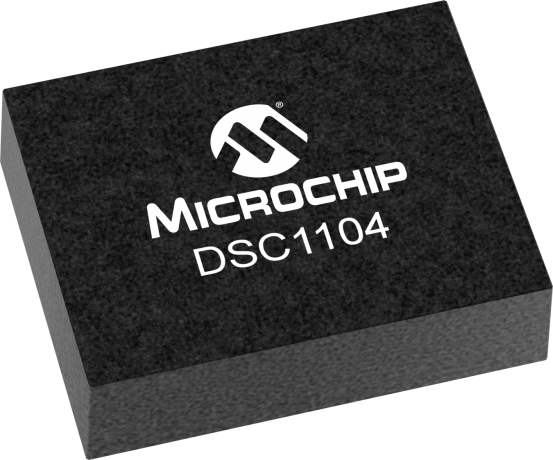

product primary image

DSC1104

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The DSC1104 & DSC1124 series of high performance oscillators utilizes a proven silicon MEMS technology to provide excellent jitter and stability over a wide range of supply voltages and temperatures. By eliminating the need for quartz or SAW technology, MEMS oscillators significantly enhance reliability and accelerate product development, while meeting stringent clock performance criteria for a variety of communications, storage, and networking applications.DSC1104 has a standby feature allowing it to completely power-down when EN pin is pulled low; whereas for DSC1124, only the outputs are disabled when EN is low. Both oscillators are available in industry standard packages, including the small 2.5mm x 2.0mm, and are “drop-in” replacements for standard 6-pin HCSL quartz crystal oscillators.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.

Additional Features
  • Low RMS Phase Jitter: <1 ps (typ.)
  • High Stability: ±10, ±25, ±50 ppm
  • Industrial: -40°C to 85°C
  • Ext. Industrial: -40°C to 105°C
  • Ext. commercial: -20°C to 70°C
  • High Supply Noise Rejection: -50dBc
  • Short Lead Time: 2 Weeks
  • Wide Freq. Range: 2.3 to 460MHz
  • 2.5mm x 2.0mm, 3.2mm x 2.5mm, 5.0mm x 3.2mm, & 7.0mm x 5.0mm
  • Qualified to MIL-STD-883
  • 20x better MTF than quartz oscillators
  • Low Current Consumption
  • Supply Range of 2.25V to 3.6V
  • Standby & Output Enable Function
  • Lead Free & RoHS Compliant
  • LVDS & LVPECL Versions Available
Parametrics
Name
Value
Sub Group 1
Low Jitter Oscillators
Supply Voltage (V)
2.25 - 3.6
Output Type
HCSL
Output Frequency Min (MHz)
2.3
Output Frequency Max (MHz)
460
# of Outputs
1
Phase Jitter
<1ps
Typ Jitter (1#875-20MHz)
1.7
Output Logic
HCSL

Documents

Jump to:

Data Sheets

Supporting Collateral


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSC1104DE5-100.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DI1-100.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DI1-156.2500T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DL2-026.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DL3-100.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104NI2-100.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1104AI2-100.0000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1104DE5-100.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DI1-100.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DI1-156.2500
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DL1-027.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DL1-027.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DL2-026.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DL3-100.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104NI2-100.0000
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1104AE1-100.0000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1104AE1-100.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1104AE2-145.2000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1104AE2-145.2000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1104AI2-100.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1104DI2-100.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DI2-100.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DI5-100.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104DI5-100.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1104BI1-027.0000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1104BI1-027.0000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1104CI5-125.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CM3-100.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CM3-100.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104BI2-100.0000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1104BI5-100.0000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1104CI1-027.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI2-027.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI2-100.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI2-316.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI3-027.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104BE2-100.0000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1104BE2-100.0000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1104BI2-100.0000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1104BI5-100.0000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1104CE2-027.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CE2-027.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI1-027.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI2-027.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI2-100.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI3-027.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI5-125.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1104CI2-316.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
