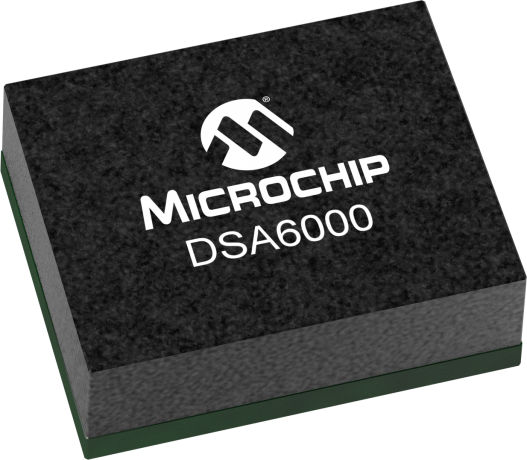

DSA6000

Ultra-low Power Automotive Grade MEMS Osc.

Status: In Production

Features:

  • Automotive AEC-Q100 Qualified
  • Wide Frequency Range: 2 kHz to 80 MHz
  • Ultra-Low Power Consumption: 1.3 mA/1 μA (Active/Standby)
  • Ultra-Small Footprints
  • High Stability: ±20 ppm, ±25 ppm, ±50 ppm
  • Supply voltage Range: 1.71V to 3.63V
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The DSA60xx family of MEMS oscillators combines industry-leading low-power consumption, ultra-small packages with exceptional frequency stability, and jitter performance over temperature. The single-output DSA60xx MEMS oscillators are excellent choices for use as clock references in automotive applications in which small size, low power consumption, and long-term reliability are paramount. The device family is
Automotive Grade and AEC-Q100 qualified.

The Ultra-low power DSA60XX family is  available in ultra-small 1.6 mm x 1.2 mm and 2.0 mm x 1.6 mm packages. Other package size include: 2.5 mm x 2.0 mm. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal oscillators.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.



Additional Features
  • Automotive AEC-Q100 Qualified
  • Wide Frequency Range: 2 kHz to 80 MHz
  • Ultra-Low Power Consumption: 1.3 mA/1 μA (Active/Standby)
  • Ultra-Small Footprints
    • 1.6 mm x 1.2 mm
    • 2.0 mm x 1.6 mm
    • 2.5 mm x 2.0 mm
  • Frequency Select Input Supports Two Pre-Defined Frequencies
  • High Stability: ±20 ppm, ±25 ppm, ±50 ppm
  • Wide Temperature Range
    • Automotive Grade 1: –40°C to +125°C
    • Automotive Grade 2: –40°C to +105°C
    • Automotive Grade 3: –40°C to +85°C
  • Excellent Shock and Vibration Immunity: Qualified to MIL-STD-883
  • High Reliability: 20x Better MTF Than Quartz Oscillators
  • Supply voltage Range: 1.71V to 3.63V
  • Lead Free & RoHS Compliant
  • Short Sample Lead Time: <1 week
Parametrics
Name
Value
Sub Group 1
Ultra-low power
Input Type
Integrated MEMS
Supply Voltage (V)
1.71 - 3.63
Output Type
LVCMOS
Output Frequency Min (MHz)
0.002
Output Frequency Max (MHz)
80
# of Outputs
1
Period Jitter (Pk-Pk)
10
Output Logic
LVCMOS

Documents

Jump to:

Data Sheets


572KB

Supporting Collateral


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSA6003JI1B-020.0000TVAO
0.007400
0.046667
4
VLGA
2.5x2.0x0.89mm
Au Flash
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
