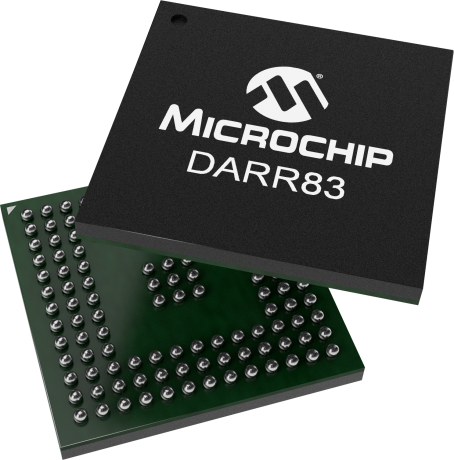

product primary image

DARR83

Status: In Production

Features:

  • Single, dual and tri-band support (2.4/5.2/5.8GHz)
  • Seamless RF band and channel switching
  • In-room range of up to 50 meters
  • Multi-point to multi-point transmission, allowing multiple receivers to listen to the same audio stream
  • Up to four uncompressed stereo audio channels
  • Bi-directional audio support, allowing simultaneous RX and TX on a single device
  • Integrated USB controller offering wireless multi-channel audio
  • Video data transfer of up to 10Mbps
  • Integrated 8052 MCU with 45KB code RAM and 8KB data RAM
  • Wireless rear speakers, soundbars and subwoofers
  • Wireless home cinema and audio networks
  • Wireless headphones, gaming headsets and microphones
  • MP3/PMP wireless docking stations
  • Wireless USB audio dongles
  • Wireless video and webcams
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The DARR83 audio baseband processor is at the heart of Microchip's next generation of wireless audio solutions. Multiple innovative technologies, including Microchip's Wireless DNA™ Detect 'n Avoid architecture, deliver excellent co-existence with other wireless products such as Wi-Fi and Bluetooth, without impacting the robust wireless audio link. This tri-band technology yields excellent wireless performance, even when the DARR83 is co-located with Wi-Fi 802.11 a/b/g/n technology.

The DARR83 offers a multi-point to multi-point HD wireless audio platform for consumer electronics including home entertainment, PC and gaming console/headset applications, among others. A DWAM83-TB reference design is available and can easily be applied to the afore-mentioned applications.* The DARR83 supports both SD and HD audio links, offering a wide range of sample rates (from 24 to 96kHz) and resolutions (from 16 to 24-bits). The integrated USB 2.0 PHY and controller offer a bi-directional, multi-stream audio interface. This feature enables the DARR83 to act as a USB audio device with the capability to support up to eight mono audio channels. The DARR83 integrates many automated functions such as seamless RF band switching, RF channel selection, transmitter/receiver association and low-power audio snooze mode. This robust feature set facilitates easy product integration and provides end-users with a simple, reliable and intuitive wireless audio solution.

*Other reference designs are available including the USB83 USB audio dongle, DWHP83 headphone module and DWPCIE83 PCIe card module.

Additional Features

    Highlights

    • Single, dual and tri-band support (2.4/5.2/5.8GHz)
    • Seamless RF band and channel switching
    • In-room range of up to 50 meters
    • Multi-point to multi-point transmission, allowing multiple receivers to listen to the same audio stream
    • Up to four uncompressed stereo audio channels
    • Bi-directional audio support, allowing simultaneous RX and TX on a single device
    • Integrated USB controller offering wireless multi-channel audio
    • Video data transfer of up to 10Mbps
    • Integrated 8052 MCU with 45KB code RAM and 8KB data RAM

    Target Applications

    • Wireless rear speakers, soundbars and subwoofers
    • Wireless home cinema and audio networks
    • Wireless headphones, gaming headsets and microphones
    • MP3/PMP wireless docking stations
    • Wireless USB audio dongles
    • Wireless video and webcams
Parametrics
Name
Value
Device
DARR83

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DARR83-APK
0.115500
0.873077
129
TFBGA
7x7x1.0mm
SAC
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
