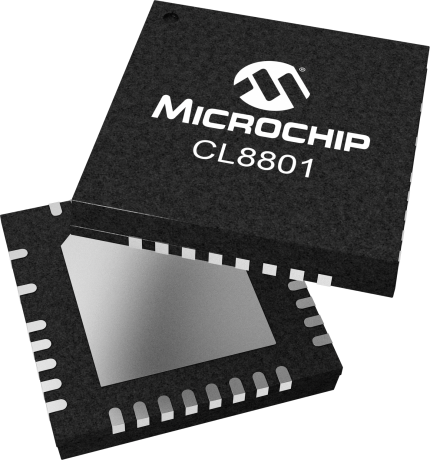

product primary image

CL8801

Sequential Linear LED Driver

Status: In Production

Features:

  • Minimal component count (base config: CL8801 + 4 resistors + diode bridge)
  • No magnetics, no capacitors
  • Up to 7.5W output (13W w/ heat sink)
  • >110Lm/W using efficient LEDs
  • 85% electrical efficiency
  • >0.95 power factor
  • <30% THD line current
  • Low conducted EMI w/o filters
  • 85% LED luminous utilization
  • Phase dimmer compatible with an RC network
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The CL8801 is designed to drive a long string of inexpensive, low current LEDs directly from the AC mains. A basic driver circuit consists of the CL8801, four resistors, and a bridge rectifier. Two to four additional components are optional for various levels of transient protection. No capacitors, EMI filters, or power factor correction circuits are needed. A string of series/parallel LEDs is tapped at four locations. Four linear current regulators sink current at each tap and are sequentially turned on and off, tracking the input sine wave voltage. Voltage across each regulator is minimized when conducting, providing high efficiency. Output current at each tap is individually resistor-adjustable. Cross-regulation, as the CL8801 switches from one regulator to the next, provides smooth transitions. The current waveform can be tailored to optimize for input voltage range, line/load regulation, output power/current, efficiency, power factor, THD, dimmer compatibility, and LED utilization. With the addition of an RC network, the driver is compatible with phase dimming.

Additional Features
  • Minimal component count (base config: CL8801 + 4 resistors + diode bridge)
  • No magnetics, no capacitors
  • Up to 7.5W output (13W w/ heat sink)
  • >110Lm/W using efficient LEDs
  • 85% electrical efficiency
  • >0.95 power factor
  • <30% THD line current
  • Low conducted EMI w/o filters
  • 85% LED luminous utilization
  • Phase dimmer compatible with an RC network
Parametrics
Name
Value
Input Voltage Min (V)
90
Input Voltage Max (V)
275
V OUT Min (VDC)
70
V OUT Max (VDC)
350
Output Current (peak mA)
200
Dimming
External
Parallelable
Yes
Package
QFN-33
Features
4-Stage

Documents

Jump to:

Data Sheets

Software Library

Development Environment

  • Software Libraries
Software Libraries
Analog Simulation - CL8801

The CL8801 is designed to drive a long string of inexpensive, low current LEDs directly from the AC mains. A basic driver circuit consists of the CL8801, four resistors, and a bridge rectifier. Two to...

Learn More
