CL6

Linear Fixed 100mA Constant Current LED Driver

Status: In Production

Features:

  • 100mA ±5% constant current drive
  • Built-in reverse polarity protection
  • Dimmable via PWM supply
  • Overtemperature protection
  • Tab ground allows direct heatsinking to chassis
  • 90V max rating for transient immunity
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

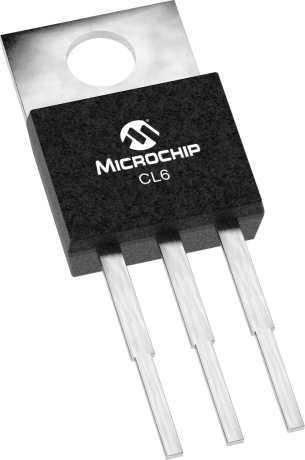

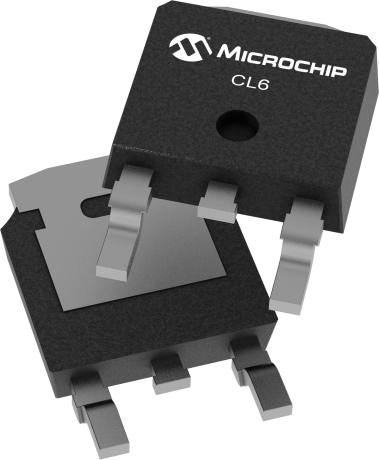

The CL6 is a fixed, linear current regulator designed for driving high brightness LEDs at 100mA from nominal 12V, 24V, or 48V supplies. With a maximum rating of 90V, it is able to withstand transients without the need for additional transient protection circuitry. The CL6 is offered in both TO-252 (D-PAK) and TO-220 packages. The tab on the TO-220 is ground, allowing heatsinking directly to a chassis without the need for electrically insulating spacers. Overtemperature protection shuts off the LED current when the die temperature rises above 135°C (nominal). Full LED current resumes when the die temperature falls below 105°C (nominal).

Additional Features
  • 100mA ±5% constant current drive
  • Built-in reverse polarity protection
  • Dimmable via PWM supply
  • Overtemperature protection
  • Tab ground allows direct heatsinking to chassis
  • 90V max rating for transient immunity
Parametrics
Name
Value
+Vin min (V)
6.5
+Vin max (V)
90
Vout min (V)
4.0
Vout max (V)
90
Output Current (mA)
100
Parallelable
Yes
Package
TO-252, TO-220
Features
OTP, reverse polarity protection

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Output Voltage (V)
Output Current (mA)
Price 5K
5.0 - 90
20
$0.26
5.0 - 220
20
$0.79
5.0 - 90
25
$0.26
4.0 - 90
20
$0.78
4.0 - 90
25
$0.79
4.0 - 90
30
$0.80
1.0 - 90
20
$0.33
1.0 - 90
25
$0.33
4.0 - 90
100
$0.90
4.0 - 90
100

1.2 - 88
50
$0.82
8.0 - 12
3
$0.35
13.9 - 18
3
$0.37
1.2 - 440
10
$0.43
