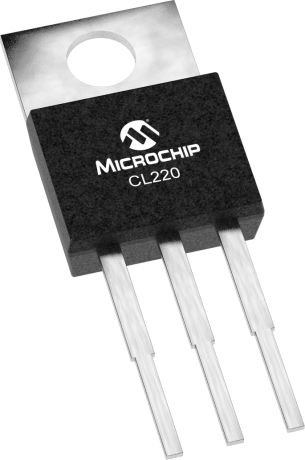

CL220

SIMPLE, 220V, 20mA, Temperature Compensated, Constant Current LED Driver IC

Status: In Production

Features:

  • 5.0 to 220V operating range (VA-B)
  • 20mA ±10% at 5.0 - 160V
  • 0.01% / °C typical temperature coefficient
  • Available in TO-252 (D-PAK) and TO-220 packages
  • Can be paralleled for higher current
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

CL220 is a high voltage, temperature-compensated, 20mA constant current regulator. The device operates at up to 220V, and is accurate to ±10% over a 5.0 - 160V range. The device can be used as a two terminal constant current source or constant current sink. A typical application for the CL220 is to drive LEDs with a constant current of 20mA. Multiple CL220s can also be used in parallel to provide higher currents such as 40mA, 60mA, 80mA, and so on. The device is available in the TO-252 (D-PAK) and TO-220 packages.

Additional Features
  • 5.0 to 220V operating range (VA-B)
  • 20mA ±10% at 5.0 - 160V
  • 0.01% / °C typical temperature coefficient
  • Available in TO-252 (D-PAK) and TO-220 packages
  • Can be paralleled for higher current
Parametrics
Name
Value
+Vin min (V)
5.0
+Vin max (V)
220
Vout min (V)
5.0
Vout max (V)
220
Output Current (mA)
20
Dimming
External FET
Parallelable
Yes
Package
DPAK, TO-220
