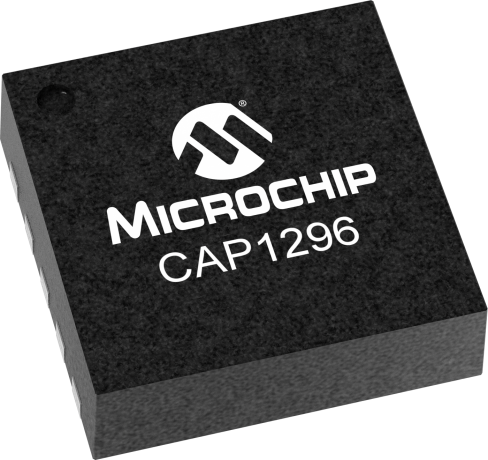

product primary image

CAP1296

Status: In Production

Features:

  • 6 Capacitive Touch Sensor inputs
  • Programmable sensitivity
  • Automatic recalibration
  • Combo Mode: Key and Proximity
  • Press and Hold feature for Volume-like Applications
  • Power Button support
  • Signal Guard
  • Low Power operations
  • 8kV protection
  • I²C™ and SMBus
  • 3.0V to 5.5V
  • 10-pin 3x3 DFN, 14-pin SOIC
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The CAP1296 is a turnkey capacitive touch controller providing a wide variety of  button and proximity functionality, and making it easy for designers to add
aesthetically pleasing, low-cost and robust touch interfaces. It also offers improved proximity detection with its Signal Guard option.

Additional Features

Key Features
  • 6 Capacitive Touch Sensor inputs
  • Programmable sensitivity
  • Automatic recalibration
  • Combo Mode: Key and Proximity
  • Press and Hold feature for Volume-like Applications
  • Power Button support
  • Signal Guard
  • Low Power operations
  • 8kV protection
Communication interface
  • I²C™ and SMBus
Operating Conditions
  • 3.0V to 5.5V
Package type
  • 10-pin 3x3 DFN, 14-pin SOIC
Parametrics
Name
Value
Product Type
Proximity/Keys/Slider
Input Channels
6
Max Number of Keys
6
Proximity detection
Yes
Measurement Principle
Self Capacitance
Power Modes
3
Interface
I2C
Features
Signal Guard/Driven Shield
Temp Range
0°C to 85°C
Voltage Range
3.00V - 5.50V

Documents

Jump to:
×

Data Sheet

CAP1296 - 6-Channel Capacitive Touch Sensor w/Proximity Detection & Signal Guard
01/21/2016
721KB

Application Notes

Download All
AN1325 - mTouch Metal Over Cap Technology
09/28/2010
409KB
AN1334 - Techniques for Robust Touch Sensing Design
05/09/2013
2254KB
AN1492 - Microchip Capacitive Proximity Design Guide
02/25/2013
741KB
AN1626 - Implementing Metal Over Capacitive Touch Sensors
01/29/2015
1594KB
AN2034 - CAP1XXX Touch Key Controller Tuning Guide
01/27/2017
1549KB

Brochures

Touch and 3D Gesture Control Brochure
10/12/2018
5862KB

Design Guides

Capacitive Touch Sensor Design Guide
01/31/2019
2542KB

User Guides

CAP1xxx Evaluation Board Quick Start Guide
11/11/2013
635KB
CAP1xxx Evaluation Board User's Guide
11/12/2013
4082KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
CAP1298 Evaluation Board
CAP1298 Evaluation Board ( DM160223 )

The CAP1298 evaluation kit provides an easy platform for evaluating and developing a variety of capacitive touch sense and proximity applications using CAP12XX family. The GUI ( Graphical User Interface) allows the user to analyze data and easily configure the controller.

A second connector allows engineer to connect their own board with CAP1XXX controller and communicate with the...

Learn More
Add To Cart

Similar Devices

Product
Product Type
Price 5K
Notes
CAP1133
Proximity/Keys/Slider
$0.55

CAP1106
Proximity/Keys/Slider
$0.53

CAP1126
Proximity/Keys/Slider
$0.67

CAP1166
Proximity/Keys/Slider
$0.74

CAP1128
Proximity/Keys/Slider
$0.74

CAP1188
Proximity/Keys/Slider
$0.81

CAP1114
Proximity/Keys/Slider
$0.87

CAP1214
Proximity/Keys/Slider
$1.48

CAP1203
Proximity/Keys/Slider
$0.36

CAP1293
Proximity/Keys/Slider
$0.43

CAP1206
Proximity/Keys/Slider
$0.45

CAP1296
Proximity/Keys/Slider
$0.49

CAP1208
Proximity/Keys/Slider
$0.59

CAP1298
Proximity/Keys/Slider
$0.64


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
CAP1296-1-AIA
0.027700
0.000000
10
VDFN
3x3x0.9
NiPdAu
e4
CAP1296-1-AIA-TR
0.027700
0.114000
10
VDFN
3x3x0.9
NiPdAu
e4
CAP1296-2-AIA-TR
0.027700
0.114000
10
VDFN
3x3x0.9
NiPdAu
e4
CAP1296-1-SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
CAP1296-1-SL-TR
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
CAP1296-2-SL-TR
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
