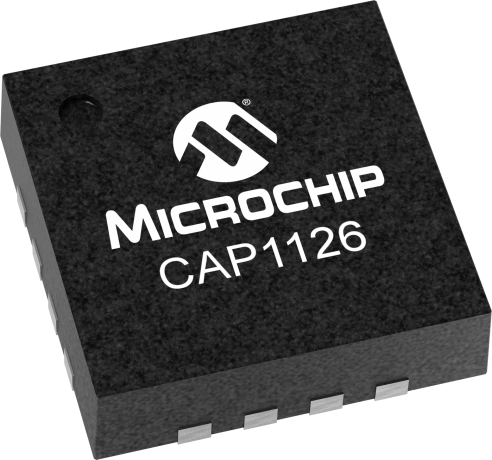

product primary image

CAP1126

Status: In Production

Features:

  • 6 Capacitive Touch Sensor Inputs
  • 2 LED Driver Outputs
  • Programmable sensitivity
  • Automatic recalibration
  • I²C™ and SMBus
  • 10-pin 3x3 DFN
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The CAP1126 is a turnkey capacitive touch controller providing a wide variety of  button and proximity functionality, and making it easy for designers to add
aesthetically pleasing, low-cost and robust touch interfaces.

The CAP1126 also contains 2 LED drivers that offer full-on / off, variable rate blinking, dimness controls, and breathing. Each of the LED drivers may be linked to one of the sensor inputs to be actuated when a touch is detected. As well, each LED driver may be individually controlled via a host controlle

Additional Features
  • 6 Capacitive Touch Sensor Inputs
  • 2 LED Driver Outputs
  • Programmable sensitivity
  • Automatic recalibration
  • Individual thresholds for each button
  • Proximity Detection
  • Multiple Button Pattern Detection
  • Analog Filtering for System Noise Sources
  • Press and Hold feature for Volume-like Applications
  • Low Power Operation
  • I²C™ and SMBus
  • 10-pin 3x3 DFN
Parametrics
Name
Value
Product Type
Proximity/Keys/Slider
Input Channels
6
Max Number of Keys
6
Proximity detection
Yes
Measurement Principle
Self Capacitance
Power Modes
3
Interface
I2C/SPI
I/O, LED Drivers
2
Temp Range
0°C to 85°C
Voltage Range
3.00V - 3.60V

Documents

Jump to:

Supporting Collateral

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
CAP1188 Evaluation Board
CAP1188 Evaluation Board ( DM160222 )

The CAP1188 evaluation kit provides an easy platform for evaluating and developing a variety of capacitive touch sense applications using CAP11XX family. The GUI ( Graphical User Interface) allows the user to analyze data and configure the capacitive touch controller as well as the LED drivers.

A second connector allows engineer to connect their own board with CAP1XXX controller and...

Learn More
Add To Cart

Similar Devices

Product
Product Type
Price 5K
Notes
Proximity/Keys/Slider
$0.55

Proximity/Keys/Slider
$0.53

Proximity/Keys/Slider
$0.67

Proximity/Keys/Slider
$0.74

Proximity/Keys/Slider
$0.74

Proximity/Keys/Slider
$0.81

Proximity/Keys/Slider
$0.87

Proximity/Keys/Slider
$1.48

Proximity/Keys/Slider
$0.36

Proximity/Keys/Slider
$0.43

Proximity/Keys/Slider
$0.45

Proximity/Keys/Slider
$0.49

Proximity/Keys/Slider
$0.59

Proximity/Keys/Slider
$0.64


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
CAP1126-1-AP-TR
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
CAP1126-1-AP-TR-V02
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
