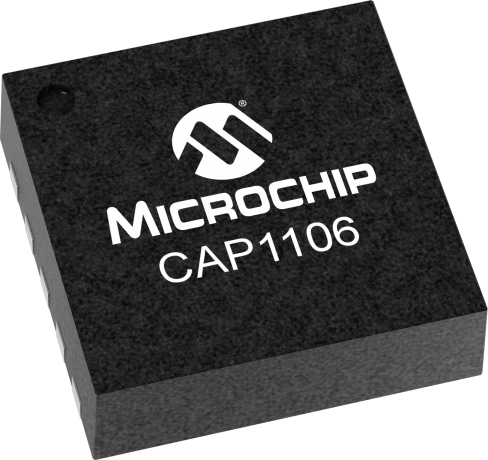

product primary image

CAP1106

Status: In Production

Features:

  • 6 Capacitive Touch Sensor inputs
  • Programmable sensitivity
  • Automatic recalibration
  • Low Power operations
  • 8kV protection
  • I²C™ and SMBus
  • 3.0V to 3.6V
  • 10-pin 3x3 DFN
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The CAP1106 is a turnkey capacitive touch controller providing a wide variety of  button and proximity functionality, and making it easy for designers to add
aesthetically pleasing, low-cost and robust touch interfaces.

Additional Features

      Key Features
      • 6 Capacitive Touch Sensor inputs
      • Programmable sensitivity
      • Automatic recalibration
      • Low Power operations
      • 8kV protection
      Communication interface
      • I²C™ and SMBus
      Operating Conditions
      • 3.0V to 3.6V
      Package type
      • 10-pin 3x3 DFN

    Parametrics
    Name
    Value
    Product Type
    Proximity/Keys/Slider
    Input Channels
    6
    Max Number of Keys
    6
    Proximity detection
    Yes
    Measurement Principle
    Self Capacitance
    Power Modes
    3
    Interface
    I2C
    Temp Range
    0°C to 85°C
    Voltage Range
    3.00V - 3.60V
