Status: Not Recommended for new designs

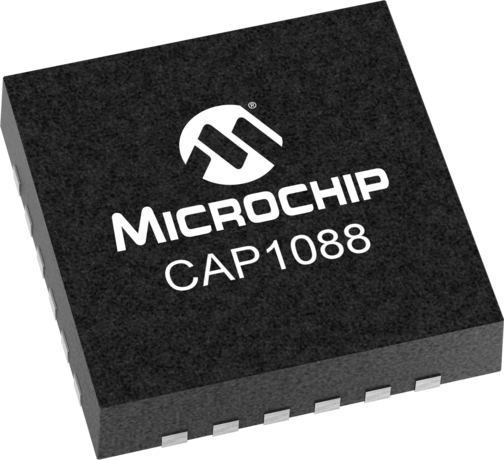

The CAP1088, which incorporates RightTouch® technology, is a multiple channel Capacitive Touch sensor with multiple power LED drivers. It contains eight (8) individual Capacitive Touch sensor inputs with programmable sensitivity for use in touch sensor applications. Each sensor automatically recalibrates to compensate for gradual environmental changes.
The CAP1088 also contains eight (8) LED drivers that offer full-on/off, variable rate blinking, dimness controls, and breathing. Each of the LED drivers may be linked to one of the sensors to be actuated when a touch is detected. As well, each LED driver may be individually controlled via a host controller.
The CAP1088 offers multiple power states operating at low quiescent currents.
During the Standby mode of operation, one or more Capacitive Touch Sensors are active and all LEDs may be used. If a touch is detected, it will wake the system using the WAKE/SPI_MOSI pin.
The Deep Sleep mode of operation is the lowest power state available, drawing 3uA of current. During this mode, no sensors are active although all LEDs may be used. Driving the WAKE/SPI_MOSI pin or communications will wake the device.
Please consider this device CAP1188
Note: The CAP1088 is not recommended for new designs. The CAP1188 is the suggested replacement device for this product.
Development tools data is currently unavailable.
For pricing and availability, contact Microchip Local Sales.
