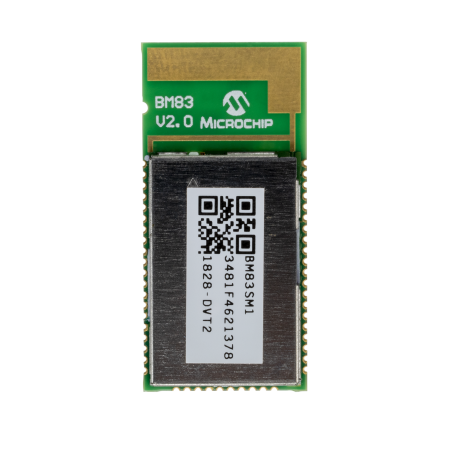

BM83

Status: In Production

Features:

  • Bluetooth 5.0 certified
  • HFP 1.7 (HF Unit Role Only), HSP 1.2, A2DP 1.3 (Source and Sink), SPP 1.2, AVRCP 1.6, PBAP 1.2
  • Supports Bluetooth classic (BR/EDR) and Bluetooth Low Energy (BLE)
  • AAC and SBC decoding
  • USB, UART, and Over-the-Air (OTA) firmware upgrade
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The BM83 is a Bluetooth® 5.0 certified dual-mode audio module. It is offered in multiple firmware variants, each of which contains an on-board Bluetooth stack and audio profiles and supports 24-bit/96 kHz high-resolution audio formats to enable high-fidelity wireless audio. An integrated Digital Signal Processor (DSP) decodes AAC and SBC codecs and executes advanced audio and voice processing such as Wide-Band (WB) speech, Acoustic Echo Cancellation (AEC) and Noise Reduction (NR). This platform provides offers flexibility in customizing peripheral settings and DSP functionality with the use of a Windows® operating system-based Graphical User Interface (GUI) configuration tool.  Our device is engineered for high levels of integration to reduce your engineering Bill of Materials (eBOM). An integrated power amplifier helps achieve longer range, and the embedded mode functionality enables system control without a host MCU.

Start playing music and receiving phone calls immediately with our pre-programmed firmware. Maintain product differentiation by deploying new features via USB, UART and Over-the-Air (OTA) firmware upgrades. The BM83SM1-00AB implements Microchip's proprietary Wireless Concert Technology (WCT) that streams audio to multiple devices from the same audio source. With its tight speaker synchronization, WCT delivers uninterrupted music to a network of speakers for party streaming.

The BM83SM1-00TA module implements A2DP source capability using Audio Transceiver (AT) firmware.  This solution enables Bluetooth capability in non-Bluetooth Audio equipment via a dongle design. The BM83 receives audio inputs through Aux-in or I2S pin and streams the audio up to two Bluetooth paired sink devices. A Bluetooth audio sink device receives audio whereas a source device transmits audio to another Bluetooth sink device.   A typical example is a smartphone (source) streaming audio to a speaker (sink).

See the IS2083/BM83 Bluetooth® Applications Design Guide for more details on features and additional firmware options for the BM83 products.

Firmware Release Summary

Firmware for each product is is embedded in IS2083 Turnkey Software and Tools v1.1.0 package.

BM83SM1-00TAAT v1.0:  Latest firmware for Audio Transceiver.  See BM83 Audio Transceiver v1.0 Release Notes.

BM83SM1-00ABMPSK2 v1.2:  Latest Firmware for Wireless Concert Technology.  See BM83 MSPK2 v1.2 Release Notes.

BM83SM1-00AA:  MPSK2 v1.1: Initial Release.  Not Recommended for New Designs.

Additional Information

See the corresponding IC, IS2083.

Additional Features
  • Bluetooth 5.0 certified
  • HFP 1.7 (HF Unit Role Only), HSP 1.2, A2DP 1.3 (Source and Sink), SPP 1.2, AVRCP 1.6, PBAP 1.2
  • Supports Bluetooth classic (BR/EDR) and Bluetooth Low Energy (BLE)
  • General Attribute Profile (GATT) and General Access Profile (GAP)
  • AAC and SBC decoding
  • Bluetooth Low Energy Data Length Extension (DLE) and secure connection
  • USB, UART, and Over-the-Air (OTA) firmware upgrade
  • I2S input/output, two digital MICs, two analog MICs, stereo analog out, aux-in
  • MCLK, I2C, two LEDs, PWM, 18 GPIOs
  • Built-in Flash for firmware updates
  • Built-in and custom voice prompts
  • System configuration and audio processing customization with GUI tool
  • 16 MHz main clock input
  • Transmit Output Power: +10.5 dBm (EDR)
  • Receive Sensitivity: -90 dBm (2 Mbps EDR)
  • Operating Voltage: 3.2V to 4.2V
  • Operating Temperature: -40ºC to +85ºC
Parametrics
Name
Value
Bluetooth Classic-Data/SPP
Yes
Bluetooth Classic-Audio
Yes
Bluetooth Low Energy
Yes
Audio Channels
Stereo
Analog Audio Out
Yes
Digital Audio Out
Yes
MIC-in
2
Line-in
Yes
I2C
1
PWM
1
ADC Channels
2
GPIO
18
Package Type
Module
Package Size
32 x 15 x 2.5 mm
Temperature Range
-40C to +85C
Operating Voltage Range
3.2V to 4.2V
UART
Yes

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
BM83 Bluetooth Audio Development Kit
BM83 Bluetooth Audio Development Kit ( DM164152 )

The BM83 Bluetooth Audio Development Board (BM83 EVB) enables the user to evaluate and demonstrate the functionality of the BM83 audio module and IS2083BM System-on-Chip (SoC). This board is a complete, all-in-one solution to develop multiple Bluetooth audio applications including portable speakers and headphones. The BM83 EVB features an on-board PIC32 for Host MCU mode applications, an external...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
BM83SM1-00AA
0.000000
3.392857
50
MODULE
32x15x2.5mm
NiAu
e4
BM83SM1-00TA
0.000000
3.392857
50
MODULE
32x15x2.5mm
NiAu
e4
BM83SM1-00AB
0.000000
3.392857
50
MODULE
32x15x2.5mm
NiAu
e4
To see a complete listing of RoHS data for this device, please Click here
