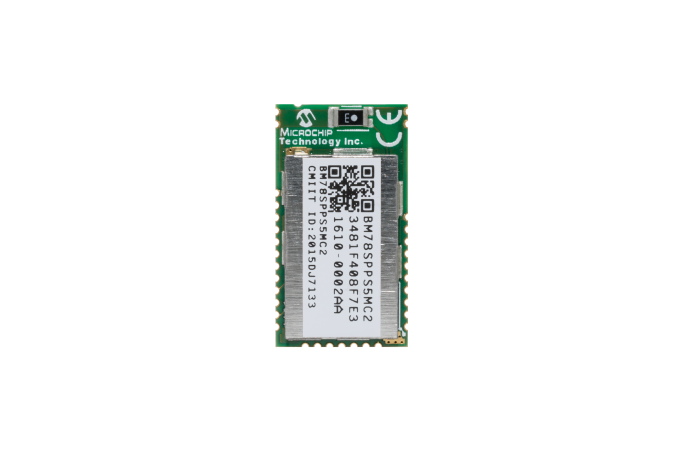

product primary image

BM78

Bluetooth Dual Mode Module

Status: In Production

Features:

  • Bluetooth 5 Certified
  • Dual-Mode Bluetooth Classic and Bluetooth Low-Energy
  • Module certified for use in USA, Canada, Europe, Japan, Korea, Taiwan, China, and India
  • Mobile Application supported in Microchip Bluetooth Data (MBD)
  • Latest Firmware Revision: 1.35
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The BM78 is a fully-certified Bluetooth® dual-mode (BR/EDR/LE) module for designers who want to easily add dual mode Bluetooth wireless capability to their products.  Delivering local connectivity for the Internet of Things (IoT), the BM78 bridges your product to Smart Phones and Tablets for convenient data transfer, control and access to cloud applications.

This Bluetooth SIG certified module provides a complete wireless solution with Bluetooth stack on-board, integrated antenna, and worldwide radio certifications in a compact surface mount package, 22 x 12 x 2.4 mm.  It supports GAP, SDP, SPP, and GATT profiles.  Data is transferred over the Bluetooth link by sending/receiving data via transparent mode over UART, making it easy to integrate with any processor or Microcontroller with a UART interface.  Configuration is made easy using a Windows® based GUI or directly via UART by a microcontroller.

The Microchip Bluetooth Data (MBD) mobile app is available to speed up development for both Android and iOS.

Microchip's complimentary and confidential Wireless Check online design review service is available for customers who have selected our products for their application design-in*.
*The online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Firmware Release Summary, see Software Release Notes for details:

BM78SPPx5MC2-0004AA - FW 1.35 - Enhancements to UITool configurations and other bug fixes.

BM78SPPx5MC2-0002AA - FW 1.20 - Initial Release. Not recommended for new designs.

BM78SPPx5NC2-0002AA - ROM 1.00 - Initial Release. Not recommended for new designs.

Additional Features
  • Bluetooth 5 Certified
  • Dual-Mode Bluetooth Classic and Bluetooth Low-Energy
  • Module certified for use in USA, Canada, Europe, Japan, Korea, Taiwan, China, and India
  • Mobile Application supported in Microchip Bluetooth Data (MBD)
  • Latest Firmware Revision: 1.35
  • On-board embedded Bluetooth Stack
  • Easy to use transparent mode for data transfer via UART
  • Easy to configure with Windows® GUI or direct by MCU
  • Multiple I/O pins for control and status
  • Secure AES128 encryption
  • GAP, SDP, SPP, GATT profiles
  • Firmware can be field upgradable via UART
  • Compact surface mount module: 22 x 12 x 2.4 mm
  • Castellated surface mount pads for easy and reliable host PCB mounting
Parametrics
Name
Value
Bluetooth Classic-Data/SPP
Yes
Bluetooth Low Energy
Yes
FCC Certified
Yes
No-shield Option
Yes
I2C
1
Memory Type
Flash/ROM
GPIO
7
Pin Count
33
Package Type
Surface mount module
Package Size
22 x 12 x 2.4 mm, 15 x 12 x 1.8mm
Min Temp Range
-20C
Max Temp Range
+70C
Op Voltage Min
3.3V
Op Voltage Max
4.2V

Documents

Jump to:

Data Sheets


2156KB

Application Notes

Software Libraries/Firmware

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
BM78 PICtail Plus
BM78 PICtail Plus ( BM-78-PICTAIL )

BM78 PICtail/PICtail Plus Board provides rapid prototyping and developing for Bluetooth data applications for Classic SPP or Bluetooth Low Energy.  It can be powered via USB host or external battery.  The BM-78-PICtail utilizes the BM78 module, a fully certified Bluetooth 4.2 dual mode RF module supporting Bluetooth Classic SPP (Serial Port Profile) and Bluetooth Low Energy (BTLE), to...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
BM78SPP05NC2-0001AA
1.286765
30
MODULE
12x15mm
NiAu
e4
BM78SPP05NC2-0002AA
1.286765
30
MODULE
12x15mm
NiAu
e4
BM78SPPS5NC2-0001AA
1.386364
33
MODULE
12x22mm
NiAu
e4
BM78SPPS5NC2-0002AA
1.386364
33
MODULE
12x22mm
NiAu
e4
BM78SPP05MC2-0001AA
1.286765
30
MODULE
12x15mm
NiAu
e4
BM78SPP05MC2-0002AA
1.286765
30
MODULE
12x15mm
NiAu
e4
BM78SPP05MC2-0004AA
1.286765
30
MODULE
12x15mm
NiAu
e4
BM78SPPS5MC2-0001AA
1.386364
33
MODULE
12x22mm
NiAu
e4
BM78SPPS5MC2-0002AA
1.386364
33
MODULE
12x22mm
NiAu
e4
BM78SPPS5MC2-0004AA
1.386364
33
MODULE
12x22mm
NiAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
