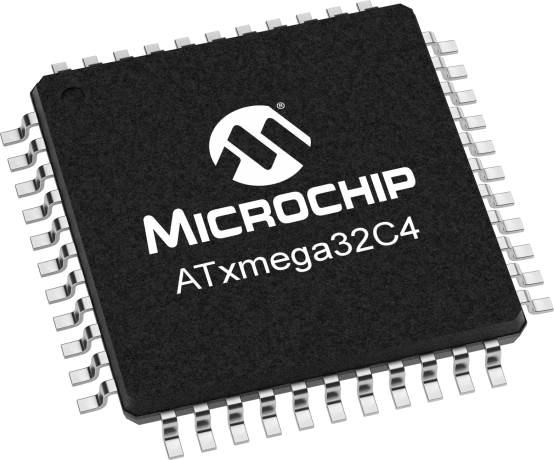

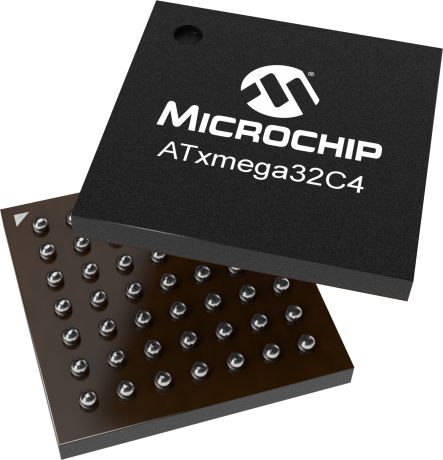

ATxmega32C4

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The high-performance, low-power 8/16-bit AVR XMEGA microcontroller combines 32KB in-system programmable flash memory (4KB boot code section) with read-while-write capabilities, 1KB EEPROM, 4KB SRAM, four-channel event system, a programmable multi-level interrupt controller, 34 general purpose I/O lines, a 16-bit real time counter, four flexible 16-bit timer/counters with capture, compare and PWM channels, USB Full-speed Device, two USARTs, two Two-Wire Interfaces (TWIs), two Serial Peripheral Interfaces (SPIs), one 12-channel/12-bit ADC with programmable gain, two analog comparators with window mode, a programmable watchdog timer with separate internal oscillator, accurate internal oscillators with PLL and prescaler, and programmable brown-out detection.

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
32
CPU Speed (MIPS/DMIPS)
32
SRAM (B)
4,096
Data EEPROM/HEF (bytes)
1024
Digital Communication Peripherals
2-UART, 4-SPI, 2-I2C
Capture/Compare/PWM Peripherals
14 Input Capture, 14 CCP, 14PWM
Timers
4 x 16-bit
Number of Comparators
2
Number of USB Modules
1, Full Speed
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
1.6 to 3.6
Pin Count
44
Low Power
Yes
