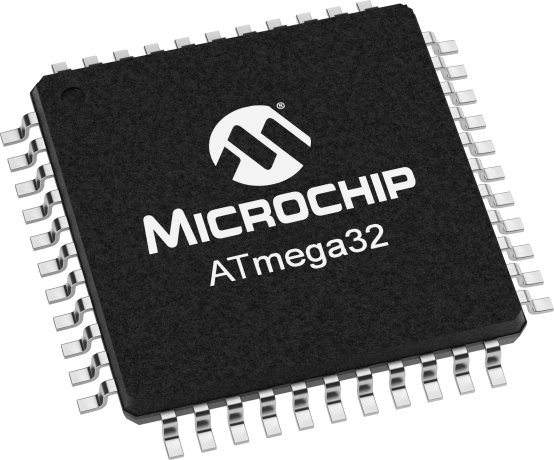

product primary image

ATmega32

Newer Device Available ATMEGA32A

Status: In Production

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The high-performance, low-power Microchip 8-bit AVR RISC-based microcontroller combines 32KB ISP flash memory with read-while-write capabilities, 1KB EEPROM, 2KB SRAM, 54/69 general purpose I/O lines, 32 general purpose working registers, a JTAG interface for boundary-scan and on-chip debugging/programming, three flexible timer/counters with compare modes, internal and external interrupts,serial programmable USART, a universal serial interface (USI) with start condition detector, an 8-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator, SPI serial port, and five software selectable power saving modes. The device operates between 1.8-5.5 volts.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

For product comparison, please consider: ATMEGA32A

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
32
CPU Speed (MIPS/DMIPS)
16
SRAM (B)
2,048
Data EEPROM/HEF (bytes)
1024
Digital Communication Peripherals
1-UART, 1-SPI, 1-I2C
Capture/Compare/PWM Peripherals
1 Input Capture, 1 CCP, 4PWM
Timers
2 x 8-bit, 1 x 16-bit
Number of Comparators
1
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2.7 to 5.5
Pin Count
44

Documents

Jump to:

Application Notes

Download All

MISC

White Papers

Development Environment

  • Integrated Development Environments
  • Compilers
  • Software & Configurators
  • Emulators & Debuggers
  • Programmers
  • Demo & Evaluation Boards
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Atmel-Studio
Atmel Studio IDE ( Atmel-Studio )

Studio 7 is the integrated development platform (IDP) for developing and debugging all AVR® and SAM microcontroller applications. The Atmel Studio 7 IDP gives you a seamless and easy-to-use environment to write, build and debug your applications written in C/C++ or assembly code. It also connects seamlessly to the debuggers, programmers and development kits that support AVR® and SAM...

Learn More
IAR EW for AVR
IAR Embedded Workbench for AVR ( IAR EW for AVR )

IAR Embedded Workbench for AVR is a complete set of powerful C/C++ development tools with extensive support for AVR Microcontroller families. IAR offers a completely integrated development environment incorporating a compiler, an assembler, a linker and a debugger. IAR Embedded Workbench for AVR features world-leading

...

Learn More
Compilers
MPLAB-XC8
MPLAB XC8 Compiler ( MPLAB-XC8 )

Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development. Finding the right compiler to support your device is simple:

  • MPLAB XC8 supports all 8-bit PIC® and AVR® microcontrollers (MCUs)
  • MPLAB XC16 supports all 16-bit PIC MCUs and dsPIC® Digital
...

Learn More
AVR-GCC
AVR GCC ( AVR-GCC )

The AVR® Toolchain is a collection of tools/libraries used to create applications for AVR microcontrollers. This collection includes compiler, assembler, linker and Standard C and math libraries.

Most of these tools are based on efforts from GNU (www.gnu.org), and some are developed by Microchip. For more information please refer to the release notes.

The Atmel...

Learn More
Software & Configurators
atmel-start
START ( atmel-start )

Atmel START is an innovative online tool for intuitive, graphical configuration of embedded software projects. It lets you select and configure software components, drivers and middleware, as well as complete example projects, specifically tailored to the needs of your application. The configuration stage lets you review dependencies between software components, conflicts and hardware constraints....

Learn More
Emulators & Debuggers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Shipments of the MPLAB\\® PICkit 4 In-Circuit Debugger were temporarily suspended due to the coronavirus shutdown in China. We expect them to resume in the next month. If you require an MPLAB debugger/programmer immediately, we are offering 50% off an MPLAB ICD 4 In-Circuit Debugger. Use code ICD4PROMO at

...

Learn More
Add To Cart
Atmel-ICE Full Kit
Atmel-ICE Full Kit ( ATATMEL-ICE )

Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.

Atmel-ICE supports:

  • Programming and on-chip debugging of all AVR 32-bit MCUs on both JTAG and aWire interfaces
  • Programming and on-chip debugging of all AVR
...

Learn More
Add To Cart
MPLAB(R) Snap In-Circuit Debugger
MPLAB(R) Snap In-Circuit Debugger ( PG164100 )

Our most affordable debugger has power to impress.

The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC®, AVR and SAM flash MCUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE) version 5.05 or later. The MPLAB Snap can be connected to a computer using a

...

Learn More
Add To Cart
Programmers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Shipments of the MPLAB\\® PICkit 4 In-Circuit Debugger were temporarily suspended due to the coronavirus shutdown in China. We expect them to resume in the next month. If you require an MPLAB debugger/programmer immediately, we are offering 50% off an MPLAB ICD 4 In-Circuit Debugger. Use code ICD4PROMO at

...

Learn More
Add To Cart
Atmel-ICE Full Kit
Atmel-ICE Full Kit ( ATATMEL-ICE )

Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.

Atmel-ICE supports:

  • Programming and on-chip debugging of all AVR 32-bit MCUs on both JTAG and aWire interfaces
  • Programming and on-chip debugging of all AVR
...

Learn More
Add To Cart
MPLAB(R) Snap In-Circuit Debugger
MPLAB(R) Snap In-Circuit Debugger ( PG164100 )

Our most affordable debugger has power to impress.

The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC®, AVR and SAM flash MCUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE) version 5.05 or later. The MPLAB Snap can be connected to a computer using a

...

Learn More
Add To Cart
Demo & Evaluation Boards
Power Debugger kit
Power Debugger kit ( ATPOWERDEBUGGER )

Power Debugger is a powerful development tool for debugging and programming AVR microcontrollers using UPDI, JTAG, PDI, debugWIRE, aWire, TPI or SPI target interfaces and ARM® Cortex®-M based SAM microcontrollers using JTAG or SWD target interfaces.

In addition the Power Debugger has two independent current sensing channels for measuring and optimizing the power consumption of

...

Learn More
Add To Cart
ATSTK600 Kit
ATSTK600 Kit ( ATSTK600 )

A complete starter kit and development system for the 8-bit and 32-bit AVR microcontrollers that gives designers a quick start to develop code on the AVR, with advanced features for prototyping and testing new designs.

The AVR device connects to the STK600 using an innovative routing and socketcard sandwich system, which routes the signals from the device to the appropriate...

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
SRAM (B)
Price 5K
Notes
44
16
1,024
$3.22

44
16
1,024
$2.00

44
32
2,048
$3.91

44
32
2,048
$2.26

64
64
4,096
$5.66

64
64
4,096
$3.16

44
8
0
$1.94


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMEGA3209-AF
0.142800
2.940000
48
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA325-16AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290-16AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290PA-AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329A-AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290A-AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250PA-AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250A-AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290PA-AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250V-8AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250-16AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290V-8AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290PV-10AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250PV-10AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290P-20AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250P-20AUR
0.497000
1.199000
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250-16AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250V-8AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325-16AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325A-AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325A-AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325P-20AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325PA-AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325PV-10AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325V-8AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325V-8AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290-16AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290A-AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290P-20AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290PV-10AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3290V-8AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329-16AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329-16AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329P-16AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329P-20ANR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329P-20AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329PV-10AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329PV-10AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329V-8AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329V-8AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3209-AU
0.142800
2.940000
48
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA3209-AUR
0.142800
0.300000
48
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA329PA-AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325PA-AU
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325A-AN
0.540000
4.122222
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325A-ANR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329PA-AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329A-AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325P-20AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA325PV-10AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA329P-20AUR
0.540000
0.750000
64
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3209-AFR
0.142800
0.300000
48
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA3250P-20AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250PV-10AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250PA-AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA3250A-AU
0.497000
2.333333
100
TQFP
14x14x1mm
Matte Tin
e3
ATMEGA324PB-AN
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324PB-AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA328PB-AN
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA328PB-ANR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA328PB-AU
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA328PB-AUR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA32M1-15AD
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA32C1-15AD
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA32A-AN
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA3208-AF
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA328P-AN
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA328P-ANR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA324P-20AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324PA-ANR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324PA-AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324PV-10AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32A-AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32A-AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32U4-AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32U4-AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA3208-AFR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA32-16AQR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32-16AQ
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32-16AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324A-AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324PA-AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324PV-10AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32A-ANR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32M1-AU
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA32U4RC-AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA3208-AU
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA3208-AUR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA324PB-ANR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324PB-AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324PB-ABT
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324A-AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA328-AU
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA328-AUR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA328P-AU
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA328P-AUR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA328PB-ABTVAO
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA324PB-ABTVAO
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32-16AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32C1-15AZ
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA32L-8AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32L-8AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32M1-15AZ
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA32U2-AU
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA32U2-AUR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA32M1-AUR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA324P-20AQ
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324PA-AN
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324P-20AQR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA324P-20AU
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA32U4RC-AUR
0.273300
0.748333
44
TQFP
10x10x1mm
Matte Tin
e3
ATMEGA328P-15AZ
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
ATMEGA324A-CU
0.044300
0.467347
49
VFBGA
5x5x1mm
SAC105
e8
ATMEGA324PA-CU
0.044300
0.467347
49
VFBGA
5x5x1mm
SAC105
e8
ATMEGA324PB-MBT
0.138800
0.261000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324PB-MBTVAO
0.138800
0.261000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324PB-MU
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA328PB-MBTVAO
0.068100
0.128000
32
VQFN
5x5x1mm
Matte Tin
e3
ATMEGA328PB-MN
0.061300
0.512245
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA328PB-MNR
0.061300
0.148200
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA328PB-MU
0.061300
0.512245
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA328PB-MUR
0.061300
0.148200
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA32M1-15MD
0.126800
0.031750
32
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32C1-15MD
0.126800
0.031750
32
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA3208-MF
0.061300
0.512245
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA32L-8MU
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA328P-MMHR
0.040600
0.123333
28
VQFN
4x4x1mm
NiPdAu
e4
ATMEGA328P-MUR
0.061300
0.148200
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA328-MUR
0.060800
0.061000
32
VQFN
5x5x1mm
Matte Tin
e3
ATMEGA328P-MMH
0.040600
0.489796
28
VQFN
4x4x1mm
NiPdAu
e4
ATMEGA328P-MU
0.061300
0.512245
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA328-MU
0.060800
0.448980
32
VQFN
5x5x1mm
Matte Tin
e3
ATMEGA328P-MN
0.060800
0.448980
32
VQFN
5x5x1mm
Matte Tin
e3
ATMEGA328P-MNR
0.060800
0.061000
32
VQFN
5x5x1mm
Matte Tin
e3
ATMEGA325A-MNR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA329PA-MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA325A-MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA325PA-MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA329A-MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA329PA-MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA325A-MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA325PA-MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA325A-MN
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA324P-20MQ
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324P-20MQR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324PV-10MUR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA325V-8MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA328P-15MZ
0.061300
0.148200
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA329-16MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA32U4RC-MUR
0.132100
0.262500
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324PA-MN
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32U4-MU
0.132100
0.600962
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32U4RC-MU
0.132100
0.600962
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32U4-MUR
0.132100
0.262500
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA325-16MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA325-16MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA325V-8MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA3208-MU
0.061300
0.512245
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA3208-MUR
0.061300
0.148200
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA324PB-MN
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA3208-MFR
0.061300
0.148200
32
VQFN
5x5x0.9mm
Matte Tin
e3
ATMEGA324PA-MU
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32-16MU
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32-16MUR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324A-MU
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324A-MUR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324P-20MUR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324PA-MNR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324PA-MUR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324PV-10MU
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA325PV-10MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA328-MMH
0.040600
0.489796
28
VQFN
4x4x1mm
NiPdAu
e4
ATMEGA328-MMHR
0.040600
0.123333
28
VQFN
4x4x1mm
NiPdAu
e4
ATMEGA329-16MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA329P-20MN
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA329P-20MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA329P-20MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA329PV-10MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA329PV-10MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA329V-8MUR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA32A-MN
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32A-MNR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32A-MU
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32A-MUR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32L-8MUR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324PA-MCHR
0.059800
0.143333
44
VQFN
5x5x1mm
NiPdAu
e4
ATMEGA324A-MCH
0.059800
3.116667
44
VQFN
5x5x1mm
NiPdAu
e4
ATMEGA324PA-MCH
0.059800
3.116667
44
VQFN
5x5x1mm
NiPdAu
e4
ATMEGA32M1-15MZ
0.126800
0.031750
32
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32C1-15MZ
0.126800
0.031750
32
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32U2-MUR
0.068700
0.185758
32
VQFN
5x5x1mm
Matte Tin
e3
ATMEGA324P-B15MZ
0.132100
0.262500
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA329V-8MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA325P-20MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA324P-20MU
0.137900
0.627778
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA324PB-MUR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA329P-20MNR
0.197800
0.248500
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA32M1-MU
0.126800
0.572115
32
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA32U2-MU
0.068700
0.408163
32
VQFN
5x5x1mm
Matte Tin
e3
ATMEGA329PV-10MN
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA325PV-10MU
0.197800
0.842308
64
VQFN
9x9x1mm
Matte Tin
e3
ATMEGA324PB-MNR
0.137900
0.061000
44
VQFN
7x7x1mm
Matte Tin
e3
ATMEGA3208-XF
0.229200
0.489362
28
SSOP
.209in
Matte Tin
e3
ATMEGA3208-XFR
0.229200
0.333333
28
SSOP
.209in
Matte Tin
e3
ATMEGA3208-XU
0.229200
0.489362
28
SSOP
.209in
Matte Tin
e3
ATMEGA3208-XUR
0.229200
0.333333
28
SSOP
.209in
Matte Tin
e3
ATMEGA32L-8AE
N/A
1.393750
44
TQFP
10x10x1mm
SnPb
e0
ATMEGA3209-MF
0.063800
0.000000
48
UQFN
6x6x0.5mm
Matte Tin
e3
ATMEGA3209-MFR
0.063800
0.153333
48
UQFN
6x6x0.5mm
Matte Tin
e3
ATMEGA3209-MU
0.063800
0.000000
48
UQFN
6x6x0.5mm
Matte Tin
e3
ATMEGA3209-MUR
0.063800
0.153333
48
UQFN
6x6x0.5mm
Matte Tin
e3
ATMEGA324P-20PU
6.500000
10.60000
40
PDIP
.600in
Matte Tin
e3
ATMEGA324PV-10PU
6.500000
10.60000
40
PDIP
.600in
Matte Tin
e3
ATMEGA32L-8PU
6.500000
10.60000
40
PDIP
.600in
Matte Tin
e3
ATMEGA32A-PU
6.500000
10.60000
40
PDIP
.600in
Matte Tin
e3
ATMEGA32-16PU
6.500000
10.60000
40
PDIP
.600in
Matte Tin
e3
ATMEGA324PA-PU
6.500000
10.60000
40
PDIP
.600in
Matte Tin
e3
ATMEGA324PA-PN
6.500000
10.60000
40
PDIP
.600in
Matte Tin
e3
ATMEGA324A-PU
6.500000
10.60000
40
PDIP
.600in
Matte Tin
e3
ATMEGA32A-PN
6.500000
10.60000
40
PDIP
.600in
Matte Tin
e3
ATMEGA328P-PN
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
ATMEGA328P-PU
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
ATMEGA328-PU
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.

Buy from Microchip

Grid
View
Table
View
Filter:
Apply
Clear
Only show products with samples
Product
Leads
Package Type
Temp Range
Packing Media
5K Pricing
Buy
