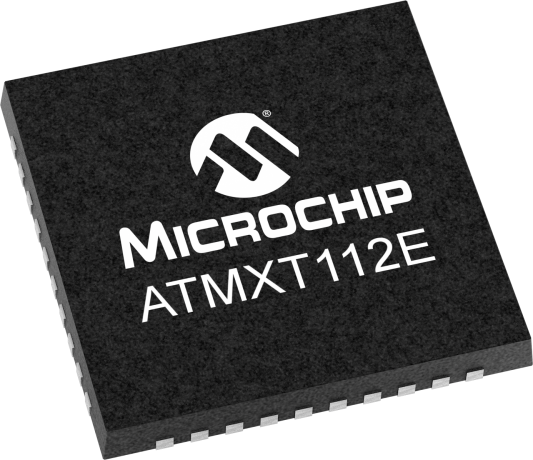

ATMXT112E

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The recommended alternative touch controller is ATMXT144U.

The mXT112E is designed for screens from 2 to 3.5 inches in diagonal. It brings the power of Microchip maXTouch E-series to applications such as digital still cameras, feature phones, GPS devices, and many more. Now these applications too can benefit from offering 4 simultaneous touches and advanced signal processing, for a real "smart phone interface" experience.

Support: off the shelf maXTouch standard modules are available to help shorten development time and reduce risk. Microchip also has a strong selection of factory trained global touch sensor module partners to help support custom touch sensor and/or touchscreen display designs.

Parametrics
Name
Value
Interface Type
I2C
Max Screen Size (Inch)
3.5
Operating Voltage range (Vcc)
0 to 3.3
Touch Response
>250 Hz
Temperature Range (degC)
-40 to 85
Max Nodes Supported
112

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATMXT112E-MA5HR028
0.047000
0.000000
40
UQFN
5x5x0.6mm
NiPdAu
e4
ATMXT112E-MA5HR038
0.047000
0.000000
40
UQFN
5x5x0.6mm
NiPdAu
e4
ATMXT112E-MA5HR025
0.047000
0.000000
40
UQFN
5x5x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
