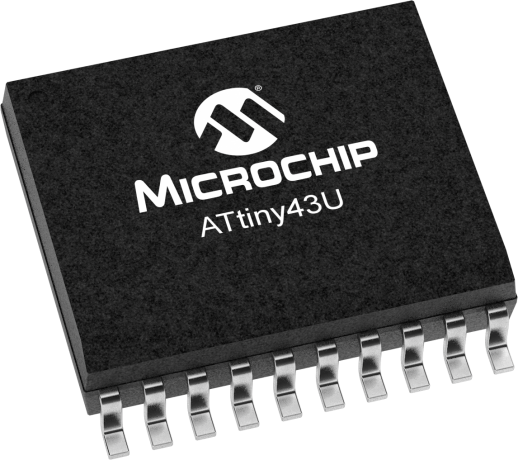

ATtiny43U

Status: In Production

Features:

  • Boost Converter: Built-in boost voltage converter providing 3V to the processor while only requiring between 0.7-1.8 volts from its external power supply (1.8-5.5 volts when the voltage converter is bypassed).
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The high-performance, ultra low-voltage 8-bit AVR RISC-based microcontroller combines 4KB flash memory, 64B EEPROM, 256B SRAM, 16 general purpose I/O lines, 32 general purpose working registers, two 8-bit timer/counters with two PWM channels, internal and external interrupts, a 4-channel 10-bit A/D converter, a universal serial interface (USI), programmable watchdog timer with internal oscillator, internal calibrated oscillator, and three software selectable power saving modes.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

AVR188: Design Guidelines for ATtiny43U

Additional Features
    • Boost Converter: Built-in boost voltage converter providing 3V to the processor while only requiring between 0.7-1.8 volts from its external power supply (1.8-5.5 volts when the voltage converter is bypassed).
Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
4
CPU Speed (MIPS/DMIPS)
8
SRAM (B)
256
Data EEPROM/HEF (bytes)
64
Digital Communication Peripherals
1-SPI, 1-I2C
Capture/Compare/PWM Peripherals
4PWM
Timers
2 x 8-bit
Number of Comparators
1
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
0.7 to 5.5
Pin Count
20
Low Power
Yes
