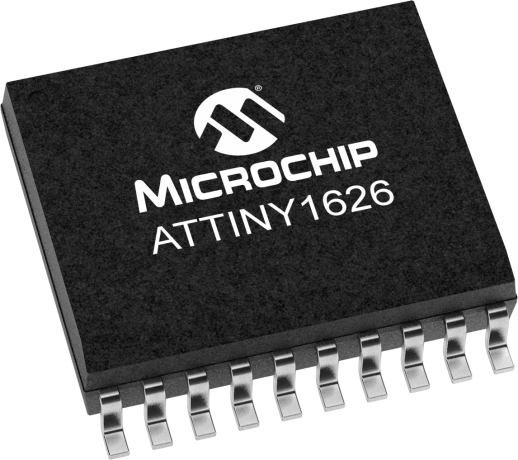

ATTINY1626

12-bit diff ADC with PGA

Status: Future Product

Features:

  • 6 channels Event System
  • Configurable Custom Logic (CCL)
  • 12-bit Differential ADC with Programmable Gain Amplifier (PGA)
  • Analog Comparator with internal DAC reference
  • 2x 16-bit Timer/Counter type B (TCB)
  • Serial communication interfaces: 2x USART, SPI, I2C
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The ATtiny1626 is a microcontroller featuring the AVR®  CPU with hardware multiplier - running at up to 20MHz and with 16 KB Flash, 2 KB SRAM and 256 bytes of EEPROM in comes in 20-pin VQFN 3 x 3 mm and SOIC packages. The family uses the latest Core Independent Peripherals with low power features including Event System, intelligent analog and advanced peripherals.

The new 12-bit ADC offers true differential measuring capabilities with optional  hardware accumulation of up to 1024 samples, which effectively gives up to 17-bits resolution. With sampling rates up to 375 ksps the analog data is available very rapidly. The Programmable Gain Amplifier (PGA) for the ADC can amplify single-ended and differential analog inputs to make it possible to measure even small amplitude signals efficiently.

Additional Features
  • High-Performance AVR RISC CPU with Hardware Multiplier
    • Running at up to 20 MHz
    • Single Cycle I/O Access
    • Two-level Interrupt Controller
    • Sleep modes: Idle, Standby, Power-down
    • 6 channels Event System
    • Configurable Custom Logic (CCL)
    • Single pin programming and debugging interface (UPDI)
  • Analog Features
    • 12-bit Differential ADC with Programmable Gain Amplifier (PGA)
    • Analog Comparator with internal DAC reference
  • Timer/Counters
    • 1x 16-bit Timer/Counter type A (TCA)
    • 2x 16-bit Timer/Counter type B (TCB)
    • 1x 16-bit Real Time Counter (RTC) with Periodic Interrupt Controller (PIT)
  • Built-in Safety Functions:
    • Power-On Reset (POR)
    • Brown-Out-Detection (BOD)
    • Voltage Level Monitor (VLM)
    • Cyclic Redundancy Check (CRC) Scan
    • Window Watchdog Timer (WWDT)
    • Communication
    • Serial communication interfaces: 2x USART, SPI, I2C
Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
16
CPU Speed (MIPS/DMIPS)
20
SRAM (B)
2,048
Data EEPROM/HEF (bytes)
256
Digital Communication Peripherals
2-UART, 1-SPI, 1-I2C
Capture/Compare/PWM Peripherals
2 Input Capture,
Timers
3 x 16-bit
ADC Input
15 ch, 12-bit
Number of Comparators
1
Temperature Range (°C)
-40 to 125
Operating Voltage Range (V)
1.8 to 5.5
Pin Count
20
